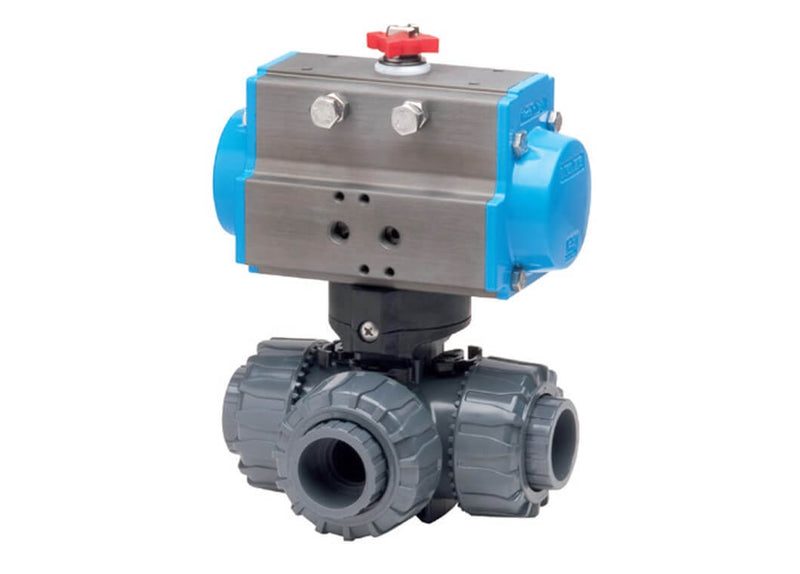

1/2" Bonomi 8P3LSRPVC - PVC, L-Port, Full Port, Ball Valve with Spring Return Pneumatic Actuator

Name: 1/2" Bonomi 8P3LSRPVC - PVC, L-Port, Full Port, Ball Valve with Spring Return Pneumatic Actuator
Brand: Bonomi Valves
SKU: 8P3LSRPVC-1/2

SKU: 8P3LSRPVC-1/2

$499.99 Was: $589.00 You Save $89.01

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Size1/2"

Pressure Rating232 PSI at 73F

Body MaterialPVC

End ConnectionComes with Threaded (FNPT) and Socket Weld connection

PortingL-Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	3-Way Pneumatically Actuated Ball Valve
Design Type	Multi-Port
Air Supply Needed	80 PSI
Actuation Type	Spring Return
Brand	Bonomi Valves
Manufacturer Part #	8P3LSRPVC-1/2
Size	1/2"

Materials & Construction

Body Material	PVC
Ball Material	PVC
Seat Material	P.T.F.E.
Packing Material	None. O-rings present in PVC valves
Stem Design	Non-blowout Proof

Performance

Pressure Rating	232 PSI at 73F
Valve Temp. Rating	73F
Act. Temp Rating	Standard (-4F;+185F), High (-4F;+302F), Low (-40F;+185F)

Connections

Porting	L-Port
Port	Full Port
End Connection	Comes with Threaded (FNPT) and Socket Weld connection

Standards & Certifications

See Specification Sheet
