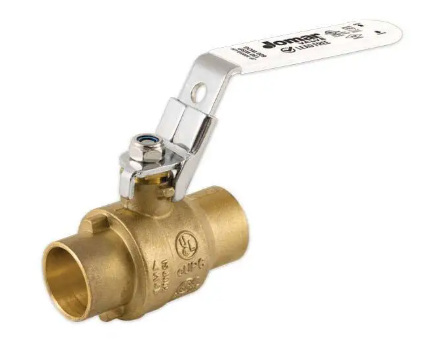

2" Jomar Valve JF-100SG-LH, 2 Piece, Full Port, Dezincification Resistant Lead-Free Brass, Soldered Ends, Stainless Steel Ball & Stem, Latch Lock Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $197.20
$141.99
(You save
$55.21
)
- SKU:
- 100-118SSG-LH
- Size:
- 2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
2" Jomar Valve JF-100SG-LH 2-Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified - NSF 61 & NSF 372 Certified
- FM Approval (1/4" - 2")
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals
- UL Listed up to 175 PSI (1/4" - 2")
- MHKZ - Manual valves
- YRPV - Gas shut-off valves
- IAPMO Certified
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- FM Approval (1/2" - 1-1/2" 600 WOG, 2" 500 WOG)
- MSS SP-110
- ASME/ANSI B16.18
Technical Specifications
Item
Ball Valve
Size
2"
Port
Full Port
Design Type
2-Piece
End Connection
Solder
Body Material
Lead-Free Brass - C46400
Ball Material
304 Stainless Steel
Handle Type
Latch Lock Handle
Seat Material
PTFE
Stem Material
304 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
Max Temp
-40°F to 500°F
