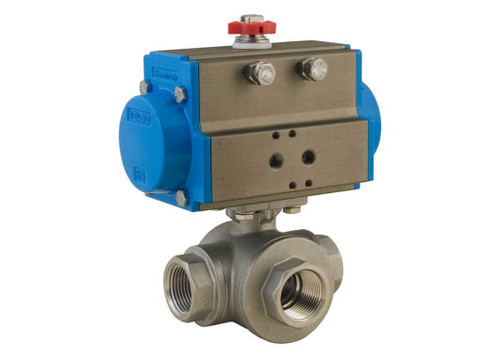

3/4" Bonomi 8P0140 - 3 Way, Stainless Steel, L-Port, Ball Valve with DA Actuator
(You save $85.65)
Product Description
3/4" Bonomi 8P0140 - Technical Specs
Item
3-Way Ball Valve with Double Acting Actuator
Port Configuration
L-Port (Standard)
Body Material
Stainless Steel (CF8M)
Body Style
3-Way
Connection Type
Threaded (FNPT x FNPT X FNPT)
Size
3/4"
Max. Pressure
1000psi
Seat Material
RTFE
Ball Material
316 Stainless Steel
Temp Range
-4F to 450F
Stem Type
Blowout Proof
Stem Material
316 Stainless Steel
Actuator Action
Double Acting
Sized For
80 PSI of Available Air Pressure
Other Details
Size:
3/4"
