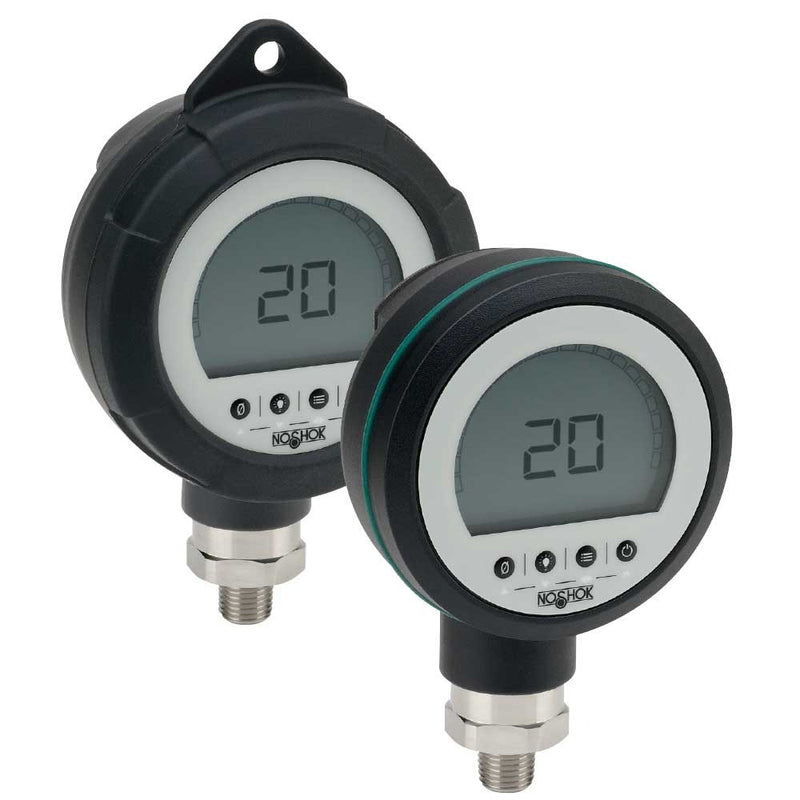

4-1/2" NOSHOK PGE20 Series General Purpose Digital Gauge, 0 to 5 psig, ±0.50% Full Scale
SKU:
4-1/2-in-NSK-PGE20-DG-0-to-5-psig-50
Made in the United States
Starting at
$598.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Please select a model to order.
Select a model above to add to cart.
Pressure Range0 psig to 5 psig
Process Connection1/4" NPT Male
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Rugged Electronic Gauge with 4 1/2-Digit Display |
|---|---|
| Accuracy | ±0.25% Full Scale |
| Measuring Element | 316L Stainless Steel |
| Display | 4 1/2-Digit with 0% to 100% Bar Graph, Back-Lit |
| Resolution | 4 1/2 Digits |
| Power Requirement | 3 x 1.5 V AA Alkaline Batteries, > 4,000 Hours |
| Response Time | 200 ms |
| Media Temp. Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temp. Range | -18°C to 55°C (0°F to 130°F) |
| Programmable Units | psi, bar, mbar, MPa, kg/cm², 1 User Defined Unit |
| Brand | NOSHOK |
| Manufacturer Part # | 4-1/2-in-NSK-PGE20-DG-0-to-5-psig-50 |
| Country of Origin | Made in the United States |
Materials & Construction
| Case Material | PBT with 30% Glass Fiber |
|---|
Performance
| Pressure Range | 0 psig to 5 psig |
|---|---|
| Operating Temp. Range | -10°C to 50°C (14°F to 122°F) |
| Proof Pressure | ≤70 psi: 3x, 100–7500 psi: 2x, >7500 psi: 1.43x Full Scale |
| Burst Pressure | ≤70 psi: 4x, 100–7500 psi: 3x, >7500 psi: 2x Full Scale |
| Environmental Rating | IP65 |
Connections
| Process Connection | 1/4" NPT Male |
|---|
Dimensions & Weight
| Weight | 0.77 lb |
|---|
