Save 24%

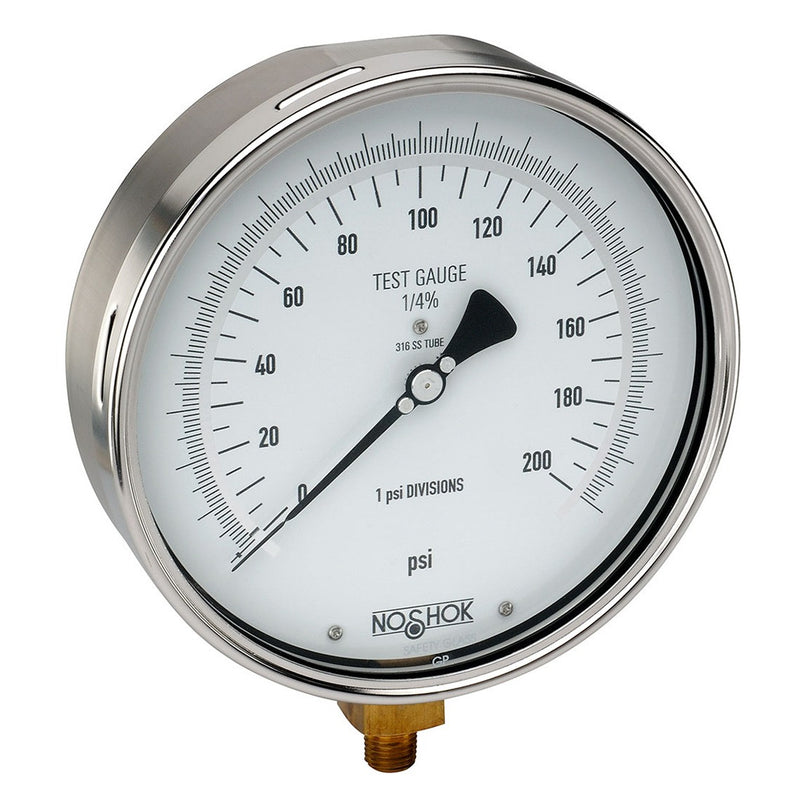

6" NOSHOK 800 Series Precision Test Pressure Gauges, 304 Stainless Steel Case, Bottom Connection, 1/2" NPT, Dry
SKU:
NOSHOK-800-Series-30/6000
Made in the United States
Starting at
$832.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Please select a model to order.
Select a model above to add to cart.
Connection Size1/4 in
Pressure Range-30 inHg to 0 psi
Connection TypeNPT
Media Temperature Range1-40 to 180°F
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Stock | Yes |
|---|---|
| Type | Pressure Gauge |
| Series | 800 |
| Full Scale Accuracy (±) | 0.25 % |
| Lens | Instrument Glass |
| Dial | Aluminum, white mirrored background with black scale. |
| Gauge Size | 6 in |
| Measuring Element | Beryllium copper Bourdon tube to 1,000 psi, 316 SS Bourdon tube 1,500 psi to 6,000 psi |
| Case Type | Stainless Steel (SS) Case, Bottom Connection |
| Pointer | Adjustable Knife-Edge Pointer |
| Movement | Brass with jeweled bearings nickel-silver pinion gear and shafts |
| Warranty | 1 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NOSHOK-800-Series-30/6000 |
| Country of Origin | Made in the United States |
Materials & Construction
| Cover Ring Material | 304 Stainless Steel |
|---|---|
| Case Material | 304 Stainless Steel |
Performance
| Media Temperature Range1 | -40 to 180°F |
|---|---|
| Ambient Temperature Range2 | -40 to 140°F |
| Pressure Range | -30 inHg to 0 psi |
| Figure Primary Scale Pressure | 2 psi |
| Graduation Primary Scale Pressure | 0.1 psi |
Connections
| Connection Type | NPT |
|---|---|
| Connection Size | 1/4 in |
| Connection Location | Bottom |
| Connection Material | Brass |
Overview
800 Series - Precision Test Pressure Gauges
- Highly accurate dry gauge
- Vacuum and compound ranges through 0 psi to 6,000 psi
- Beryllium Copper, 316 Stainless Steel, and Brass wetted parts
- Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges
