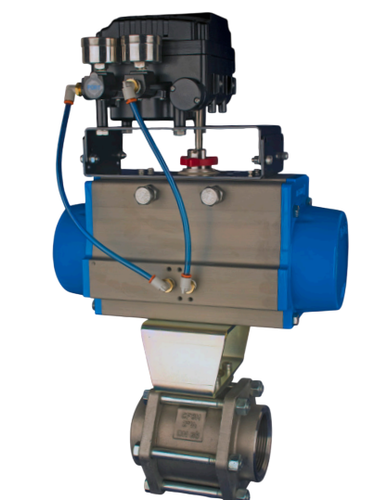

2" Bonomi EP710061V**DA 30/ 60/ 90° V-Port Ball Valve, 3 Piece, 2-Way, Stainless Steel, Socket Weld, Full Port, With Double Acting Pneumatic Actuator and Electric ENP-B 4-20mA psi Positioner

Brand : Bonomi Valves

MSRP: $1,951.40
Starting At: $1,505.99
(You save $445.41 )
SKU:
EP710061V36DA-2
Size:
2"
Size Dropdown:
True
Processing Time:
12-14 Days

2" Bonomi EP710061V**DA 30/ 60/ 90° V-Port Ball Valve Technical Specs

Item
2-Way Ball Valve (V-Port)
Size
2"
Body Material
Stainless Steel (CF8M Cast)
Ball Options
30° - 60° , 60° , 90°
Body Style
3-Piece
Port
Full port
Connection Type
Socket Weld
Max. Pressure
1000 psi
Seat Material
PTFE
Ball Material
AISI 304-CF8M
Max. Process Temp.
-4°F to 406°F
Stem Type
Blowout Proof, Antistatic Device
Stem Seal
RPTFE
Positioner
Electric ENP-B 4-20mA psi Positioner
Actuation
Double Acting (DA) pneumatic
Actuator Supply Pressure
Min. 80 psi and Max. 116 psi

Size:
2"
Size Dropdown:
True
processing-time:
12-14
specific-date:
Days
