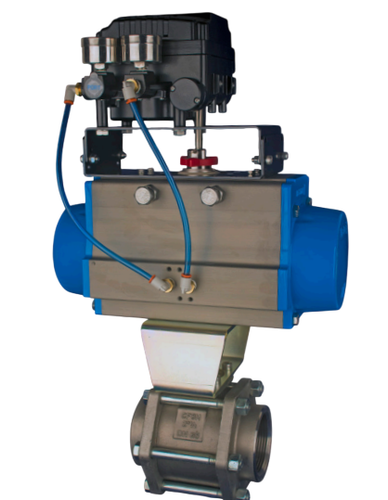

3/4" Bonomi EP710061V**DA 30/ 60/ 90° V-Port Ball Valve, 3 Piece, 2-Way, Stainless Steel, Socket Weld, Full Port, With Double Acting Pneumatic Actuator and Electric ENP-B 4-20mA psi Positioner
Brand : Bonomi Valves
MSRP: $1,546.60
Starting At:
$1,193.99
(You save
$352.61
)
- SKU:
- EP710061V36DA-3/4
- Size:
- 3/4"
- Size Dropdown:
- True
3/4" Bonomi EP710061V**DA 30/ 60/ 90° V-Port Ball Valve Technical Specs
Item
2-Way Ball Valve (V-Port)
Size
3/4"
Body Material
Stainless Steel (CF8M Cast)
Ball Options
30° - 60° , 60° , 90°
Body Style
3-Piece
Port
Full port
Connection Type
Socket Weld
Max. Pressure
1000 psi
Seat Material
PTFE
Ball Material
AISI 304-CF8M
Max. Process Temp.
-4°F to 406°F
Stem Type
Blowout Proof, Antistatic Device
Stem Seal
RPTFE
Positioner
Electric ENP-B 4-20mA psi Positioner
Actuation
Double Acting (DA) pneumatic
Actuator Supply Pressure
Min. 80 psi and Max. 116 psi
