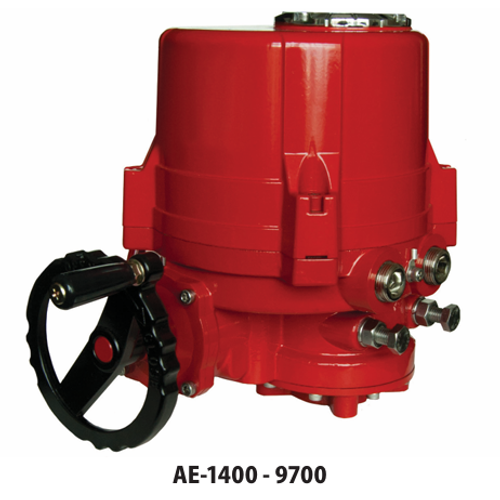

Jomar Valve AE-1400, Double Acting, Nema 4X, Manual Override Electric Actuator
Brand : Jomar Valve
MSRP: $1,778.75
Starting At:
$1,270.99
(You save
$507.76
)
- Size Dropdown:
- True
Jomar Valve AE-1400, Double Acting Electric Actuator Technical Specs
Features
- Hard anodized aluminum housing with external powder coating for severe duty applications
- Enclosure: IP67, NEMA 4 and 4X, O-ring sealed
- ISO 5211 mounting
- 90° operation
- Adjustable mechanical stops to prevent over travel
- Position indicator
- De-clutchable manual override standard
- 120V / 1Ph / 60Hz
- Thermally protected induction motor
- Double worm gearing, no brake required
- Spring loaded terminal block for ease in wiring
Technical Specifications
Item
On/Off Electric Actuator
Actuator Type
Double Acting
NEMA Rating
NEMA 4x
Duty Cycle
S2: 30 min; S4 (50%)
Torque (in lbs)
1400
Voltage Option
120V
Motor Insulation Class
Class F
Temp. Range
-4°F to 158°F
Enclosure
IP67
