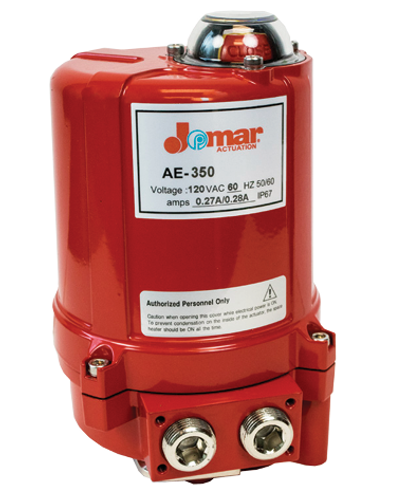

Jomar Valve AE-350, Double Acting, Nema 4X, Manual Override Electric Actuator
Brand : Jomar Valve
MSRP: $689.03
Starting At:
$492.99
(You save
$196.04
)
- Size Dropdown:
- True
Jomar Valve AE-350, Double Acting Electric Actuator Technical Specs
Features
- Hard anodized aluminum housing with external powder coating for severe duty applications
- Enclosure: IP67, O-ring sealed
- ISO 5211 mounting
- 90° operation
- Position indicator
- Manual override standard
- 120V / 1Ph / 60Hz
- Thermally protected induction motor
- Spring loaded terminal block for ease in wiring
Technical Specifications
Item
On/Off Electric Actuator
Actuator Type
Double Acting
NEMA Rating
NEMA 4x
Duty Cycle
S2: 30 min
Torque (in lbs)
350
Voltage Option
120V
Motor Insulation Class
Class B
Temp. Range
-4°F to 158°F
Enclosure
IP67
