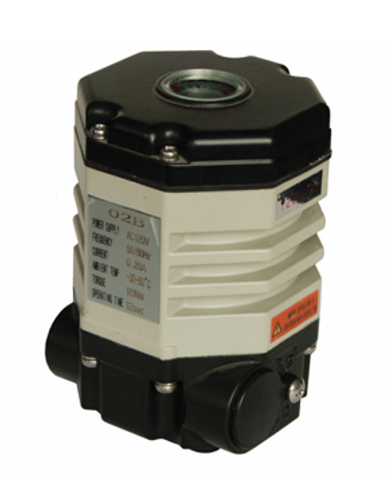

Jomar Valve AE-180-120-12, Double Acting, Nema 4X, Manual Override Electric Actuator
Brand : Jomar Valve
MSRP: $874.63
Starting At:
$624.99
(You save
$249.64
)
- Size Dropdown:
- True
Jomar Valve AE-180-120-12, Double Acting Electric Actuator Technical Specs
Features
- Hard anodized aluminum housing with external powder coating for severe duty applications
- Enclosure: IP67
- ISO 5211 mounting
- 90° operation
- Position indicator
- Manual override standard
- 120V / 1Ph / 60Hz
- Thermally protected induction motor
Technical Specifications
Item
On/Off Electric Actuator
Actuator Type
Double Acting
NEMA Rating
NEMA 4x
Duty Cycle
0.5
Torque (in lbs)
180
Voltage Option
120V
Motor Insulation Class
Class E
Temp. Range
-22°F to 140°F
Enclosure
IP67
