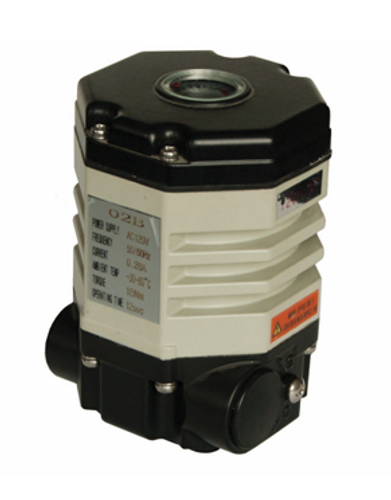

Jomar Valve AE Electric On/Off Series, Double Acting, Nema 4X, Manual Override Electric Actuator
Brand : Jomar Valve
MSRP: $874.63
Starting At:
$624.99
(You save
$249.64
)
- SKU:
- JMR-AE-Electric
- Size Dropdown:
- True
Jomar Valve AE Series, Double Acting Electric Actuator Technical Specs
Features
- Hard Anodized Aluminum Housing with External Powder Coating for Severe Duty Applications
- 90˚ Operation
- Enclosure: IP67 (Nema 4, 4X)
- ISO 5211 Mounting Pad
- Worm Gearing, No Brake Required
- Standard Manual Override
- Torque Switches for Overload Protection (not including AE-180)
- Squirrel Cage Induction Motor
- Duty Cycle: 50%
- 4 Limit Switches (AE-180: QTY 2)
- Cable Entries: 3/4" NPT / M20 x 1.5
- 5W Internal Heater (AE-350 and larger)
- Terminal Block for Wiring Ease
- Position Indicator
- Standard Adjustable Travel Stops
- Temperature range: AE-180: -22°F to 140°F AE-350 and larger: -4°F to 158°F
Technical Specifications
Item
On/Off Electric Actuator
Actuator Type
Double Acting
NEMA Rating
NEMA 4x
Duty Cycle
Refer to individual listing
Torque (in lbs)
180-9700
Voltage Option
120V
Motor Insulation Class
Class B/E/F
Temp. Range
Refer to individual listing
Enclosure
IP67
