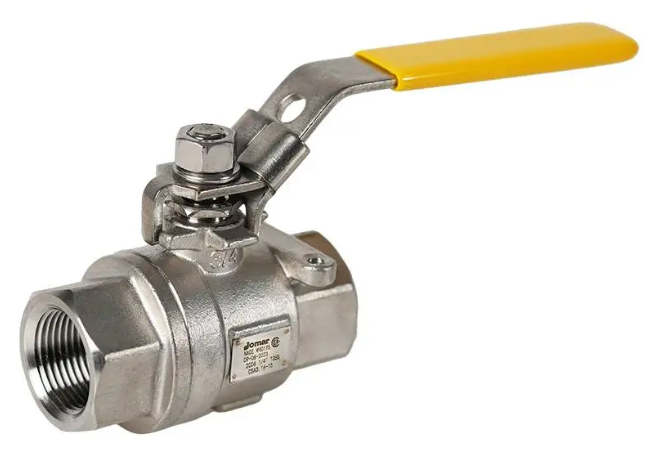

Jomar Valve T-SS-2000N-FP Series, 2 Piece, Full Port, Stainless Steel, NPT Threaded, Stainless Steel Ball & Stem, 2000 WOG Ball Valve
Brand : Jomar Valve
MSRP: $63.66
Starting At:
$45.99
(You save
$17.67
)
- SKU:
- JMR-T-SS-2000N-FP
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
Jomar Valve T-SS-2000N-FP Series 2 Piece Ball Valve Technical Specs
Features
- Solid Ball Construction
- Latch Lock May Be Locked in Open or Closed Position
- 100% Leak Tested
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- CSA Certified
- CGA 3.16 (125 PSIG) (1/4" - 2")
- ASME B16.33 (175 PSIG) (1/4" - 2")
- UL Listed
- MHKZ - Manual Valves
- YQNZ - Compressed Gas Shut-Off Valves
- YRBX - Flammable Liquid Shut-Off Valves
- YRPV - Gas Shut-Off Valves
- YSDT - LP Gas Shut-Off Valves
- YQAR - Anhydrous Ammonia Shut-Off Valves
- MSS SP-110
- Meets ISO 15848
- ANSI B1.20.1
- Buy American Act Compliant
Technical Specifications
Item
Ball Valve
Size
1/4" to 4"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
CF8M Stainless Steel
Ball Material
Stainless Steel
Handle Type
Lever
Seat Material
RPTFE
Stem Material
316 Stainless Steel
Max Pressure
(1/4" to 1") 2000 psi WOG, (1-1/4" to 2") 1500 psi WOG, (2-1/2" to 4") 1000 psi WOG, 150 psi steam
