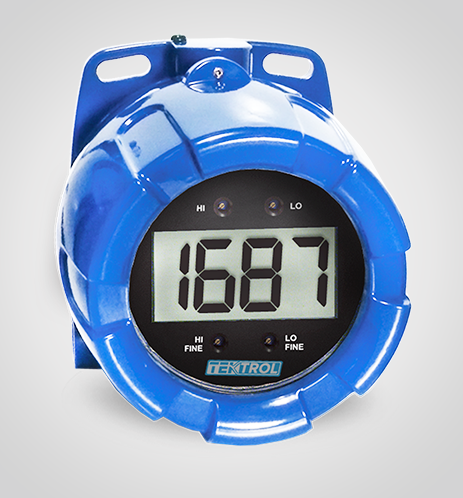

Tek-Trol Tek-LCD 7805B-0L0, Explosion-Proof Large Display Loop-Powered Meter
Brand : Tek-Trol
$1,250.99
- SKU:
- Tek-LCD 7805B-0L0
Country of Origin: Made in the United States
Tek-Trol Tek-LCD 7805B-0L0, Explosion-Proof Large Display Loop-Powered Meter Technical Specs
Features
- 4-20 mA input
- Modern, sleek and practical enclosure for safe areas
- 3½ digits, 1³ (0.08 ft) display
- Display mountable at 0°, 90°, 180°, and 270°
- Easy calibration and installation
- Loop-powered backlight option
- 1 V drop (4 V with backlight)
- Explosion-Proof, IP68, NEMA 4X Enclosure
- Flanges for wall or pipe mounting
- HART protocol transparent
- Operates from -40 °F to 167 °F (-40 °C to 75 °C)
Technical Specifications
Item
Loop-Powered Meter
Input Signal
4-20 mA
Display Update Rate
2.5 updates per second
Display Orientation
Adjustable in 90° increments up to 270°
Power Supply
9-36 VDC
Over-Range Indication
Displays "1" on leftmost digit
Accuracy
±0.1% of full span ±1 count
Normal Mode Rejection
60 dB
Operating & Storage Temp. Range
-40°F to 167°F (-40°C to 75°C)
Enclosure
Explosion-proof die-cast aluminum, NEMA 4X / IP68
