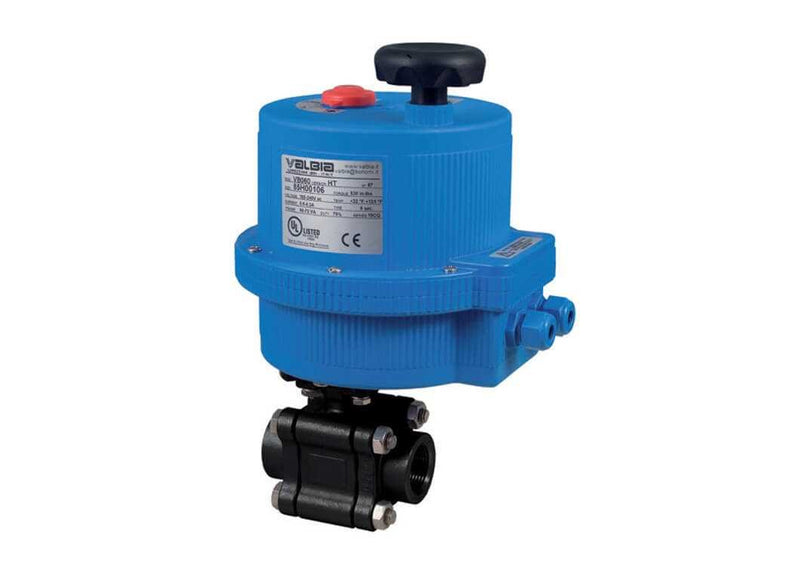

Bonomi 8E0631-00 Series - Ball Valve, Fire Safe, 2-way, 3-piece, Carbon Steel, Socket Weld, Full Port, with Electric Actuator
SKU:
BNM-8E0631-00
Starting at
$447.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size Range1/4" to 4"
Pressure Rating2200 psi (1/4" to 2"), 1500 psi (2-1/2" to 4"), WSP-250 psi
Body MaterialCarbon Steel (WCB)
Connection TypeSocket Weld
PortFull Port
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Size Range | 1/4" to 4" |
| Design Type | 3-Piece |
| Available Actuator Voltage | 12V -AC/DC |
| Fail Position | None (Fail in Place) |
| Fire Safe | API 607 |
| Duty Cycle | 50% Duty Cycle (12/24V AC) |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-8E0631-00 |
Materials & Construction
| Body Material | Carbon Steel (WCB) |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | TFM-4215 |
| Stem Design | Grounded Ball and Stem |
| Stem Material | 316 Stainless Steel |
| Packing Material | TFM |
Performance
| Pressure Rating | 2200 psi (1/4" to 2"), 1500 psi (2-1/2" to 4"), WSP-250 psi |
|---|---|
| Pressure Class | Class 900 (1/4" to 2"), Class 600 (2-1/2" to 4") |
| Working Steam Pressure | 250 psi |
| Temp Rating | -50°F to 550°F |
| NEMA Rating | NEMA 4/4X |
Connections
| Port | Full Port |
|---|---|
| Connection Type | Socket Weld |
Standards & Certifications
See Specification Sheet
