Save 15%

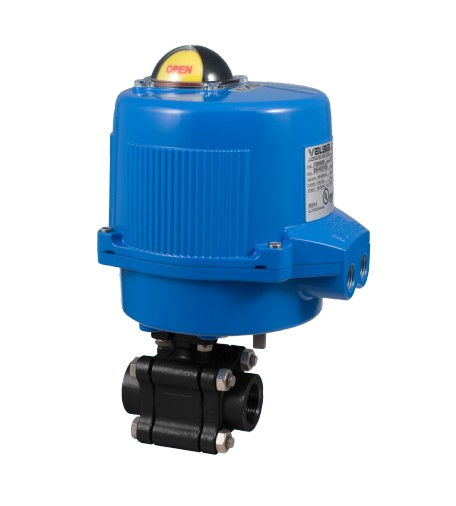

Bonomi M8E630LLV*-0** 30°/ 60°/ 90° V-Port Ball Valve, 3 Piece, Direct Mount, 2-Way, Carbon Steel, NPT Threaded, with Electric Actuator
SKU:
BNM-M8E630LLV*-0**
Starting at
$982.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/2" to 4"
Max. Pressure2200 psi (1/4" to 2"), 1500 psi (2-1/2" to 4"), 250 psi steam
Body MaterialCarbon Steel
Connection TypeNPT Threaded
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) |
|---|---|
| Size | 1/2" to 4" |
| Ball Options | 30>< , 60>< , 90>< |
| Max. Process Temp. | 150> |
| Available Actuator Package | 12V AC/DC |
| Duty Cycle | 75% Duty Cycle |
| Brand | Bonomi Valves |
| Manufacturer Part # | BNM-M8E630LLV*-0** |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Body Style | 3-Piece |
| Seat Material | TF-4215 |
| Ball Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 2200 psi (1/4" to 2"), 1500 psi (2-1/2" to 4"), 250 psi steam |
|---|---|
| NEMA Rating | NEMA 4 |
Connections
| Connection Type | NPT Threaded |
|---|
