Save 46%

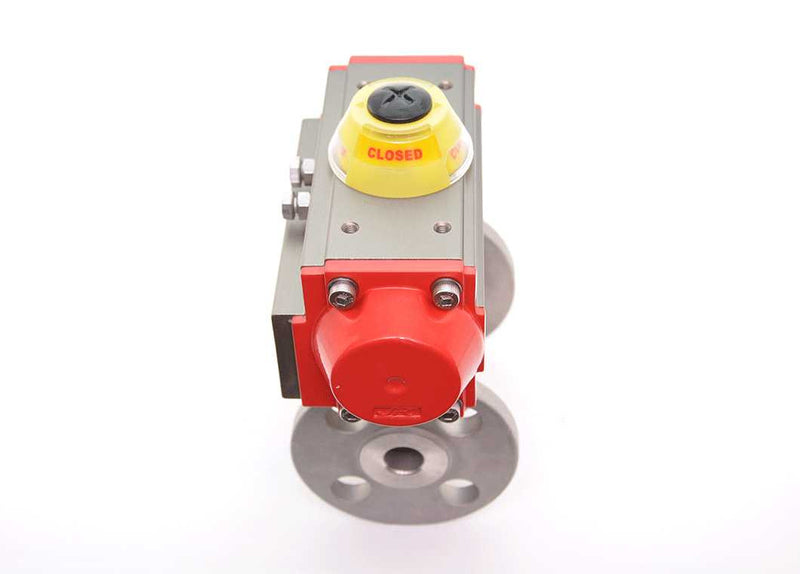

JFlow DM2533 Pneumatic Spring Return - Stainless Steel, Flanged, Ball Valve, Pneumatic, Fail Open or Close
SKU:
JFlow DM2533-FOC
Made in Taiwan
Starting at
$362.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Size1/2"-6"
Max. Pressure285psi
Body Material316 Stainless Steel
Connection Type150# Flange
Temperature Range-40F - +450F
PortFull
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Size | 1/2"-6" |
| O-Ring | Viton |
| Actuator Action | Spring Return |
| Fail Position | Please Choose |
| Sized For | 80 PSI of available air pressure |
| Brand | JFlow Controls |
| Manufacturer Part # | JFlow DM2533-FOC |
| Country of Origin | Made in Taiwan |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | Teflon (TFM-1600) |
| Stem Packing | Teflon (TFM-1600) |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 285psi |
|---|---|
| Temperature Range | -40F - +450F |
Connections
| Port | Full |
|---|---|
| Connection Type | 150# Flange |
