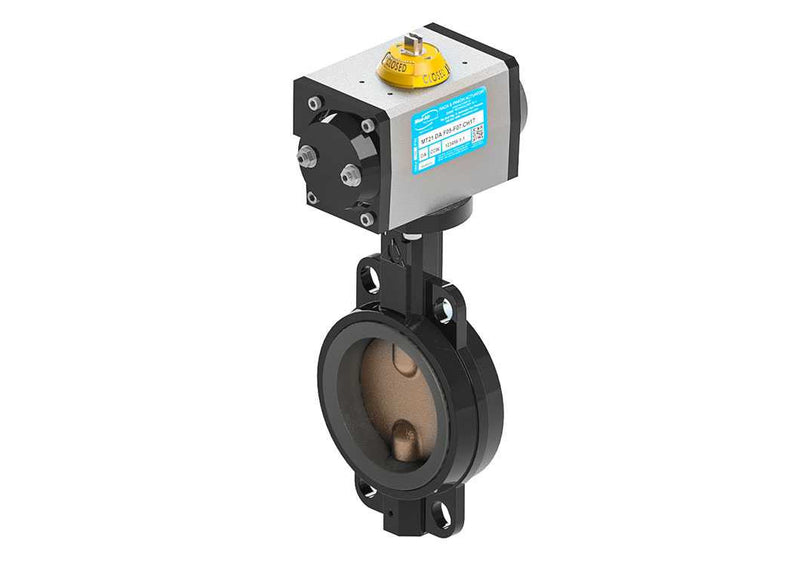

Max-Air 050-262-D8***-MA - Wafer Style Butterfly Valve, Double Acting Pneumatic, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat

Name: Max-Air 050-262-D8***-MA - Wafer Style Butterfly Valve, Double Acting Pneumatic, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat
Brand: Max-Air
SKU: 050-262-D82*0-MA

SKU: 050-262-D82*0-MA

Starting at $215.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Select a size above to add to cart.

Pressure Rating200 PSI / 150 PSI

Body MaterialEpoxy Coated Ductile Iron

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valve
Operation	Double Acting Pneumatic / Automated
Brand	Max-Air
Manufacturer Part #	050-262-D82*0-MA

Materials & Construction

Body Style	Wafer
Body Material	Epoxy Coated Ductile Iron
Disc Material	Ductile Iron Nickel Plated
Seat Material	EPDM

Performance

Pressure Rating	200 PSI / 150 PSI
Temp. Rating	-40°F to +275°F
Pressure Class	Class 150

Standards & Certifications

NSF372

Download CAD Drawing (PDF)
