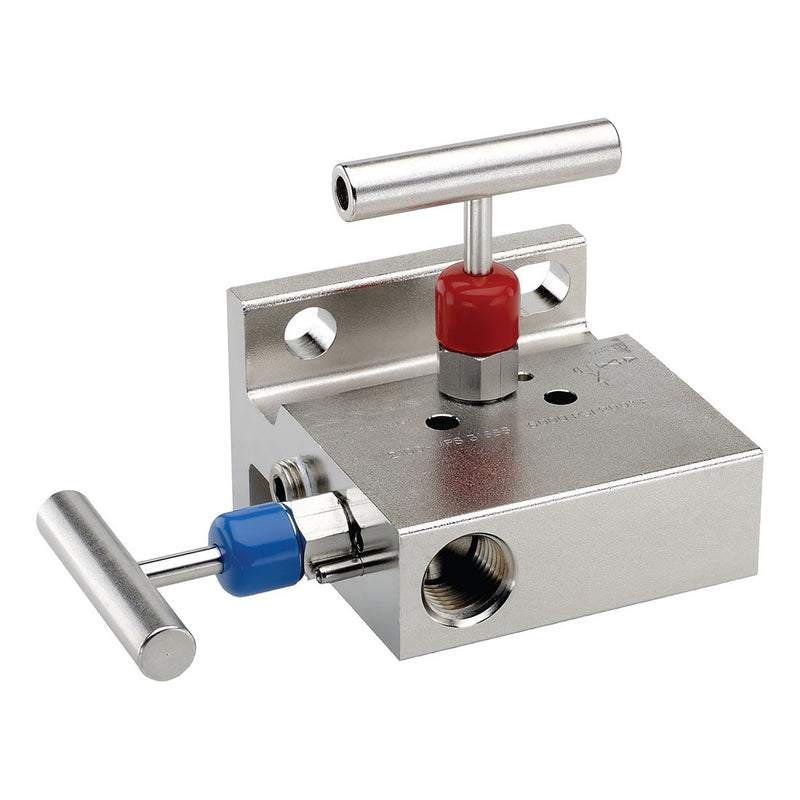

NOSHOK 2000/2100 Series Static Pressure Block & Bleed 2 Manifold Valves With Hard & Soft Seat, Hard Seat, 1/2" FNPT x 1/2" FNPT, 0.187", 2 Manifold Valve
SKU:
NSK-2000/2100-SERIES
Made in the United States
Starting at
$201.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Hard Seat, 1/2" NPT Female x 1/2" NPT Female, Steel
Soft Seat, 1/2" NPT Female x 1/2" NPT Female, Steel
Hard Seat, Flange x 1/2" NPT Female, Steel
Soft Seat, 1/2" NPT Female x 1/2" NPT Female, 316 Stainless Steel
Hard Seat, Flange x 1/2" NPT Female, 316 Stainless Steel
Soft Seat, Flange x 1/2" NPT Female, 316 Stainless Steel
Hard Seat, 1/2" NPT Female x 1/2" NPT Female, 316 SS, Carbide Ball Tip, Grafoil Packing
Please select a model to order.
Select a model above to add to cart.
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (°F) Temperature110,000 psi
Connection TypeNPT Standard or Flange
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Syndication_SET | 1 |
|---|---|
| Type | Manifold Valve |
| Series | 2-Valve |
| Process Type | Static Pressure |
| Valve Type | Female-Female |
| Orifice Size | 0.187 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-2000/2100-SERIES |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Hard Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
Performance
| Pressure Rating at 200 Degree Fahrenheit (°F) Temperature1 | 10,000 psi |
|---|---|
| Flow Coefficient Cv | 0.44 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | NPT Standard or Flange |
Overview
2000/2100 Series - Static Pressure Block & Bleed 2 Manifold Valves With Hard & Soft Seat
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Block valve is located on the left side and the bleed valve is located on top in a 90° orientation, venting is to the right
