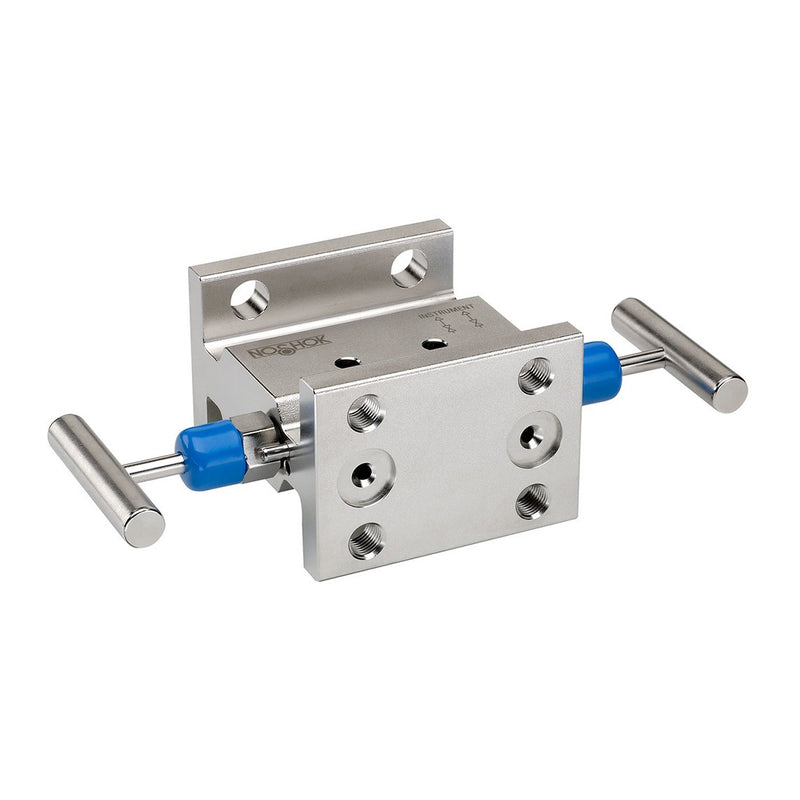

NOSHOK 2020/2120 Series Liquid Level 2 Manifold Valves With Hard Seat & Soft Seat, Hard Seat, Flange x 1/2" FNPT, Steel, 0.187" Orifice 2 Manifold Valve
SKU:
NSK-2020/2120-SERIES
Made in the United States
$210.99
Price on request
Out of Stock
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature110,000 psi
Connection TypeNPT Standard or Flange
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 2-Valve |
| Valve Type | Flange-Female |
| Orifice Size | 0.187 in |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-2020/2120-SERIES |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials | Zinc-nickel plated steel, electropolished 316 Stainless Steel |
|---|---|
| Seat | Hard Seat |
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional |
Performance
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature1 | 10,000 psi |
|---|---|
| Flow Coefficient Cv | 0.44 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | NPT Standard or Flange |
Overview
2020/2120 Series - Liquid Level 2 Manifold Valves With Hard Seat & Soft Seat
- Designed for use with differential pressure transmitters in liquid level applications
- Available in either single flange or double flange connection for direct installation
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
