Save 32%

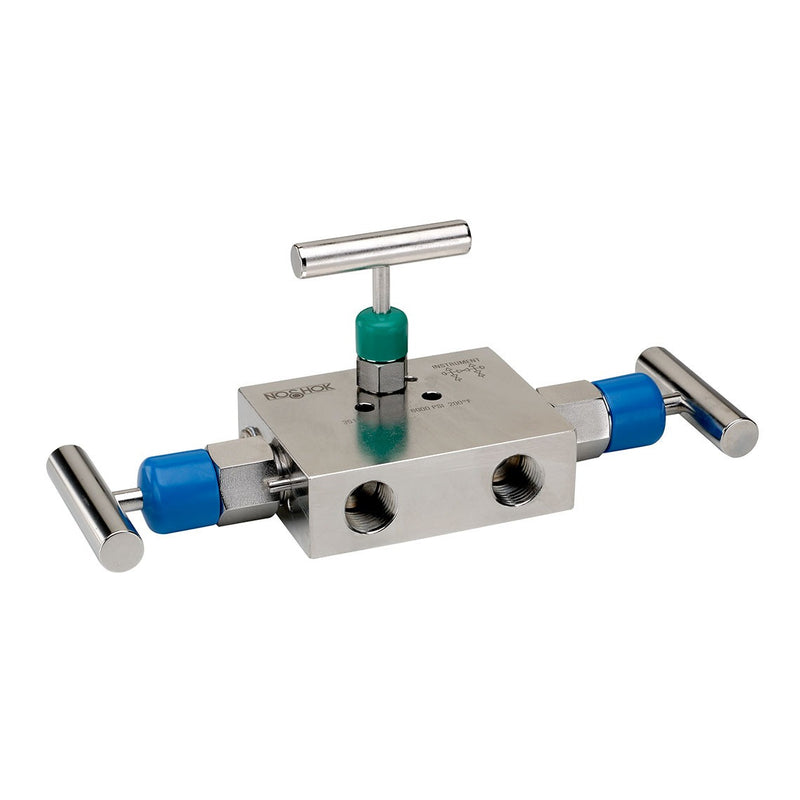

NOSHOK 3510 Series 0.375" Orifice Differential Pressure 3 Manifold Valves With Soft Seat, Soft Seat, 1/2" FNPT x 1/2" FNPT, Steel, 0.375" Orifice 3 Manifold Valve
SKU:
NSK-3510-SERIES
Made in the United States
Starting at
$255.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Please select a model to order.
Select a model above to add to cart.
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (°F) Temperature16,000 psi
Connection TypeNPT Standard or Flange
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Manifold Valve |
|---|---|
| Series | 3-Valve |
| Process Type | Differential Pressure |
| Valve Type | Female-Female |
| Orifice Size | 0.375 |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-3510-SERIES |
| Country of Origin | Made in the United States |
Materials & Construction
| Seat | Soft Seat |
|---|---|
| Valve Material | Steel |
| Stem Seal and Type | All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads |
Performance
| Pressure Rating at 200 Degree Fahrenheit (°F) Temperature1 | 6,000 psi |
|---|---|
| Flow Coefficient Cv | 3.0 |
Connections
| Connection Size | 1/2 in |
|---|---|
| Connection Type | NPT Standard or Flange |
Overview
3510 Series - 0.375" Orifice Differential Pressure 3 Manifold Valves With Soft Seat
- Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
- Available in block, single flange, or double flange connection for remote or direct installation
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
