NOSHOK 50/75/100 Series Temperature Thermowells, 1" NPT, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection
SKU:
NSK-50/75/100-1/2-in-NPT-1-in-NPSM
Made in the United States
Starting at
$76.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Process Connection Size1 in
Pressure Ratings at 70 Degree Fahrenheit (ºF)7,000 psi
Process Connection TypeNPT
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Thermowell |
|---|---|
| Style | Straight Shank |
| Bore Size | 0.260 in |
| Shank Diameter [Max] | 0.750 in |
| Insertion Diameter B [Max] | 3/4 in |
| Warranty | 1 yr |
| Stock | Yes |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-50/75/100-1/2-in-NPT-1-in-NPSM |
| Country of Origin | Made in the United States |
Materials & Construction
| Stem Length | 2-1/2 in |
|---|---|
| Material | 316 Stainless Steel |
Performance
| Pressure Ratings at 70 Degree Fahrenheit (ºF) | 7,000 psi |
|---|
Connections
| Process Connection Size | 1 in |
|---|---|
| Process Connection Type | NPT |
| Instrument Connection Size | 1/2 in |
| Instrument Connection Type | National Pipe Straight Mechanical (NPSM) |
Overview

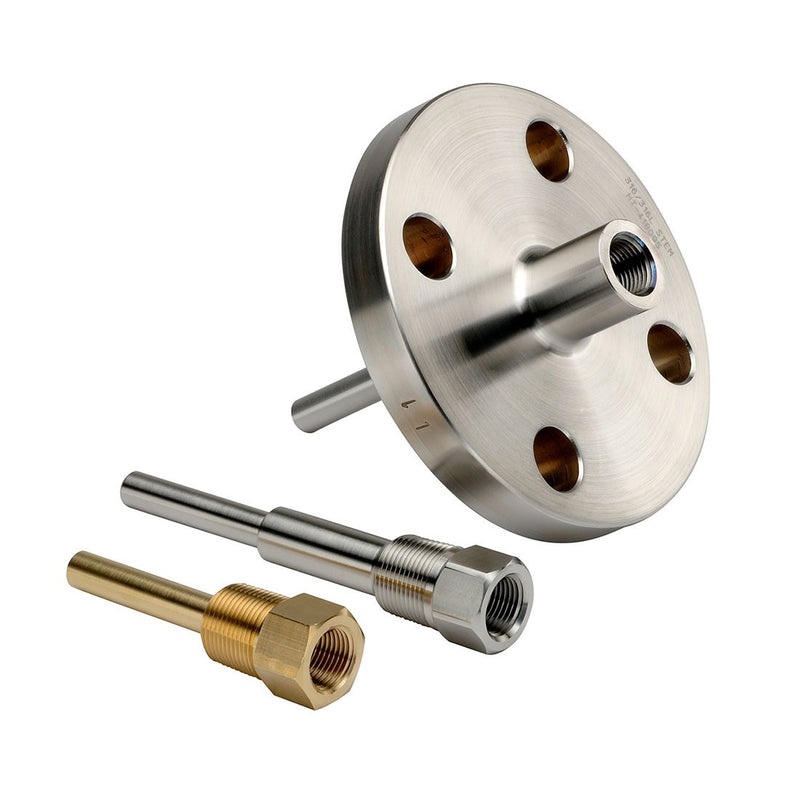

50/75/100 Series - Thermowells
- Allows a temperature instrument to be removed and replaced without shutting down and draining the process
- Reduces the possibility of damage to the temperature instrument
- Provides protection to the operator
- 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
- 150 Class and 300 Class raised face flanged thermowells available
