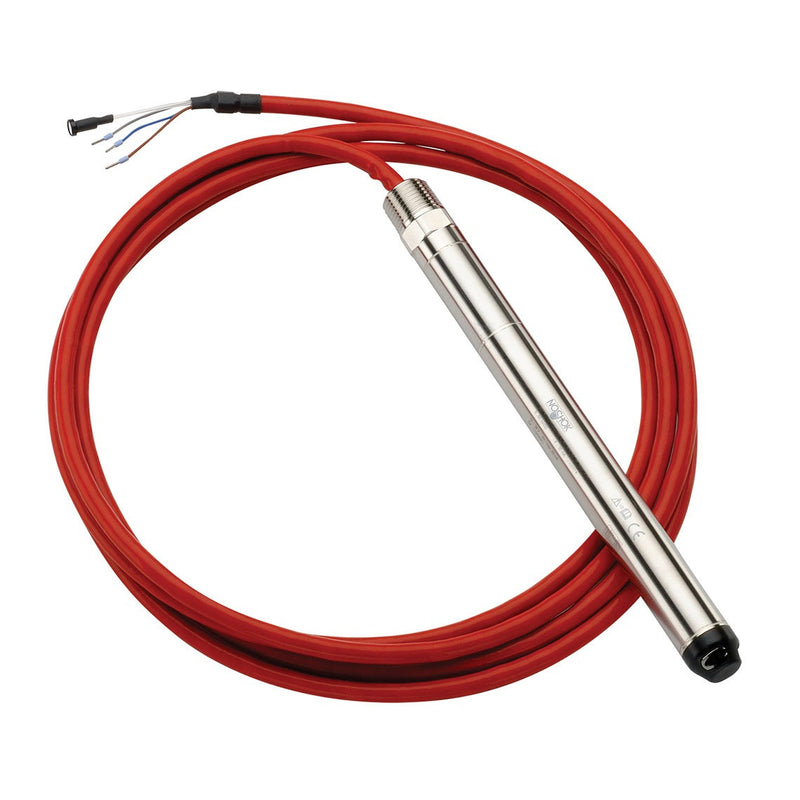

NOSHOK 611 Series Small Diameter Submersible Level Transmitters, 611-25-1-43-N-150-CBC, 0 to 25 psig, ±1% of Span Accuracy, 4 to 20 mA Output + HART® with Cable Clamp, Nose Cone & 150 ft Polyurethane (PUR) Cable
SKU:
611-25-1-43-N-150-CBC
Made in the United States
$1,936.99
Price on request
Available
Size0 to 25 psig
Pressure Range10 to 25 psig
Process ConnectionsNose Cone
Storage Temperature [Min]-40°C
Ships direct from the manufacturer — call 888-825-8800 for current lead time
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Submersible Level Transmitter |
|---|---|
| Series | 611 |
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | ± 1.0% of span % |
| Note for Accuracy | Includes non-linearity, hysteresis, zero offset and end value deviation per IEC 61298-2 |
| Output Signal | 4 mA to 20 mA, 2-Wire and HART® Signal |
| Options | Cable Clamp |
| Style | Level Transmitter |
| Optional Accuracy | ± 0.5 of span |
| Warranty | 3 yr |
| Stability | ≤ ± 0.1% of span per year |
| Switch on Time (Output signals without HART®) | ≤ 150 ms |
| Switch on Time (Output Signals with HART®) | ≤ 250 ms |
| Settling Time (Output Signals without HART®) | ≤ 100 ms |
| Settling Time (Output Signals with HART®) | ≤ 250 ms |
| Durability | < 100,000,000 full scale cycles |
| Power Requirement2 | 4mA to 20 mA: 8 Vdc to 36 Vdc |
| Load Limitations | 4 mA to 20 mA: ≤ (Vpower - 8 V) / 0.022 A |
| Measuring Element | Cap: Polyvinylidene Fluoride (PVDF) |
| Electrical Protection | Reverse polarity protection, short circuit and resistance to overvoltage :DC 40V and increased overvoltage for lightning protection. Normal discharge current ≤ 10 kA, Rise time 8/20 µs |
| Vibration According to International Electrotechnical Commission (IEC) 60068-2-6 | 4 g |
| Cable Length | 150 ft |
| Brand | NOSHOK |
| Manufacturer Part # | 611-25-1-43-N-150-CBC |
| Size | 0 to 25 psig |
| Country of Origin | Made in the United States |
Materials & Construction
| Optional Housing Material | 318 LN |
|---|---|
| Housing Material | 316 Stainless Steel |
Performance
| Pressure Range1 | 0 to 25 psig |
|---|---|
| Storage Temperature [Min] | -40°C |
| Storage Temperature [Max] | 80°C |
| Proof Pressure | 5 Times Range |
| Environmental Rating | Ingress Protection (IP68) |
| Electromagnetic Rating | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
Connections
| Process Connections | Nose Cone |
|---|---|
| Electrical Connection | Standard Polyurethane (PUR) Cable, Optional Water-Blocked Polyvinyl Chloride (PVC) Cable (200+ psi Only), Optional Fluorinated Ethylene Propylene (FEP) Cable (38) |
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Approximate Weight | 10.6 oz |
|---|---|
| Submersion Depth [Max] | 325 ft (100 m) |
Overview
611 Series - Small Diameter Submersible Level Transmitters
- Hydrostatic level measurement for use in applications including bore holes and wells with small diameters (outer diameter 0.87")
- Low power output signals for battery-powered applications, and optional temperature output available
- 5:1 turndown using optional HART® signal
