Name: NOSHOK 915 Series Spring-Loaded RTD With Transmitter, 915--330/1100-2-C21U-8-23P1-060-2, -330ºF to 1100ºF, Single 3-Wire, 4-20 mA, 1/2" NPT Male, PP White Connection Head, 1/2" NPT Conduit, 6" Stem, 1/4" Stem Diameter
Brand: NOSHOK
Price: 647.99 USD
Availability: InStock

Description
Other Details

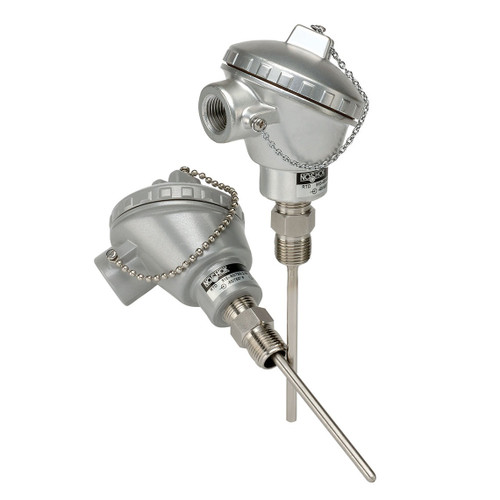

910/915 Series - Industrial Resistance Temperature Device (RTD) Probes With Connection Head

Standard head-type RTD assembly
A variety of head types are available
Factory Mutual and Canadian Standards approved explosion proof models available
Transmitter available, fits standard heads

Technical Specifications

Type

Probe with Connection Head

Series

915

Connection Type

Male National Pipe Thread (MNPT)

Wetted Materials

316 Stainless Steel

Lead Wires

Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation

Temperature Ranges [Min]

-330 ºF

Temperature Ranges [Max]

1,100 ºF

Connection Size

1/2 in

Accuracy

±0.06% (±0.15 ºC) at 0 ºC, Class A

Element Types

PT100 Ω at 0 ºC

Circuit Types

Single, 3-Wire

Electrical Connection

Connection Head with 1/2 " National Pipe Thread (NPT) Conduit

Electrical Connection Materials

Polypropylene (PP), White

Standard Finish [Max]

32 µin

Pressure Ratings for Tube

500 psi

34.5 bar

Resistance Temperature Device (RTD) Element

PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751)

Self-Heating

50 mW / ºC Typical in Moving Water

Insulation Resistance

Single Element Probes: 100 mega Ω/m" at 500 Vdc, Leads to Case

Dual Element Probes: 100 mega Ω/m" at 100 Vdc, Between Element and Leads to Case

Transition

Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC)

Optional Transmitter/Output

4 to 20 mA, 2-Wire, Upscale Burnout

Environmental Protection

A1/A2:National Electrical Manufacturers Association (NEMA) 4

P1 & S1/S2:National Electrical Manufacturers Association (NEMA) 4

Warranty

3 yr

Stem Diameters

1/4 in

Stem Lengths

6 in

Stock

Yes

Application

Industrial boilers
Petrochemical
Exhaust gas monitoring
Food processing

Prop 65 Warnings

WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Limitations Which Apply Are

These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Additional Information

Probe welded to fitting or spring loaded
If used in conjunction with a thermowell, probe can be replaced in some models without possibility for leakage
Process fitting 1/2" NPT standard, others available
RTD PT100 Ω standard, others available
2, 3 or 4-wire circuit types
Isolation to 500 Vdc

Options and Accessories

Resistance Temperature Device (RTD) Connection Head
- Screw cover
- Meet NEMA requirements for indoor or outdoor use providing protection against dust, rain, splashing and hose-directed water
- Easy access, one-turn caps
- Accept standard and DIN terminal blocks and transmitters
- Provide greater volume for ease of field wiring
Resistance Temperature Device (RTD) Terminal Block
- Provided with a steatite ceramic base, brass terminal pieces, and stainless steel screws
- Not rated for high voltage use
- Can be used in temperature sensor or low voltage Class 2 circuits
Resistance Temperature Device (RTD) Transmitter
- NOSHOK's Probe Type Industrial RTD is available with a variety of fitting sizes and probe diameters.
Thermowells
- Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
