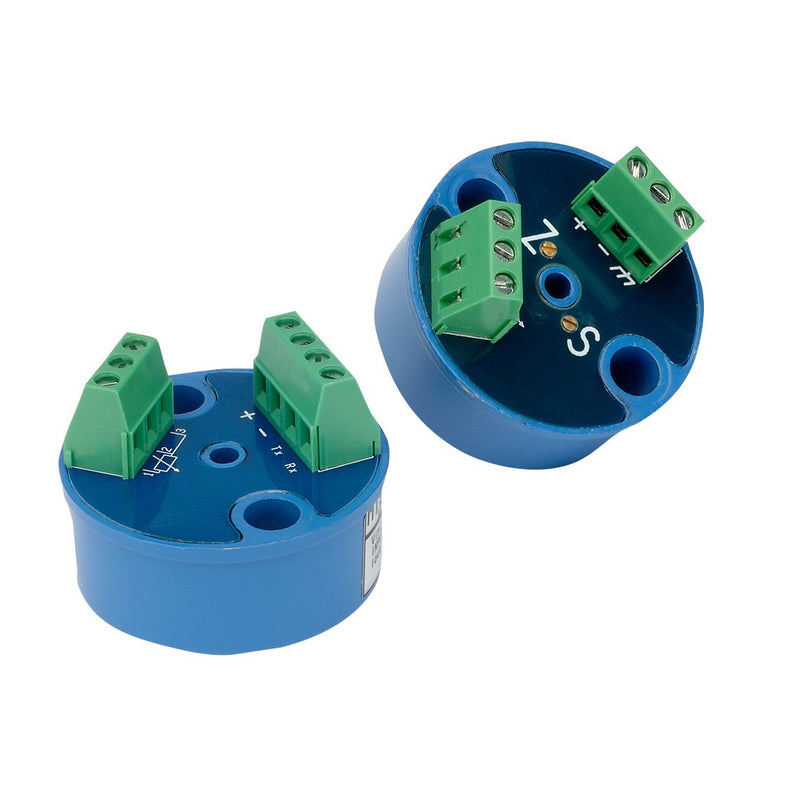

NOSHOK 920 Series Resistance Temperature Device (RTD) Transmitters

Name: NOSHOK 920 Series Resistance Temperature Device (RTD) Transmitters
Brand: NOSHOK
SKU: NOSHOK 920 Series

SKU: NOSHOK 920 Series

Made in the United States

Starting at $174.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

0 to 200 deg F 0 to 250 deg F

Select a size above to add to cart.

Low Calibrated Temperature Range0°F

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Expert Support: 888-825-8800

Technical Specifications

Type	Head-Mounted Transmitter
Series	920
Power Supply	12 to 32 Vdc, Polarity Protected
Accuracy1	0.1% Full Scale (FS) (Includes Effects of Linearity, Hysteresis and Repeatability)
Output	4 to 20 mA, 2-Wire
High Accuracy (±)	0.1 %
Supply Effect	0.02%/V, 0.001%/V with Computer Programmable Version
Zero Drift	±0.01% FS/ °C
Span Drift	±0.01% FS/ °C
Long Term Drift	≤0.5% FS/year
Span/Zero Adjustment	20 Turn Potentiometer, ±10% for Zero and Span
Maximum Loop Resistance	Rmax. = [ ( Vsupply - 9 Vdc ) / 20 mA
Open Circuit Detection Overscale Limit	27.0 mA
Open Circuit Detection Underscale Limit	2.2 mA
Warm Up	30 s
Options	None
Warranty	3 yr
Housing Diameter	1.82 in
Stock	Yes
Brand	NOSHOK
Manufacturer Part #	NOSHOK 920 Series
Country of Origin	Made in the United States

Housing Material	Die-Cast Zinc, Enamel Painted

Low Calibrated Temperature Range	0°F
High Calibrated Temperature Range	200°F
Storage Temperature [Max]	80°C
Storage Temperature [Min]	-40°C
Ambient Temperature Range	-40 to 176°F
Excitation Current Resistance Temperature Device (RTD)	0.8 mA
Sensor Lead Resistance Temperature Device (RTD) [Max]	500 O

Height	1.15 in
