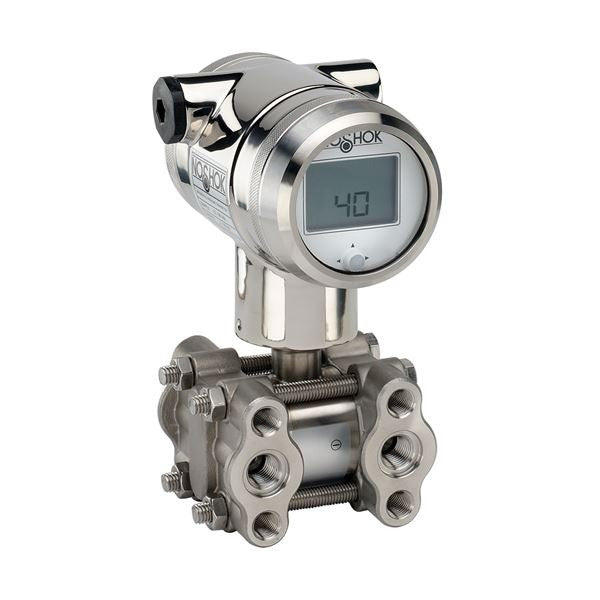

NOSHOK PTI40 Series Premier Accuracy Intelligent Industrial Pressure Transmitter PTI40-300PSIG-1-43-81-28, Min. span3 psi, max. span 300 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART
SKU:
PTI40-300psig-1-43-81-28
Made in the United States
$3,163.99
Price on request
Out of Stock
Available Models
Min. span 0.15 psi, max. span 1.0 psi
Min. span 0.15 psi, max. span 1.0 psi, Transparent Cover
Min. span3 psi, max. span 300 psi
Min. span3 psi, max. span 300 psi, Transparent Cover
Min. span 0.3 psi, max. span 30 psi
Min. span 0.3 psi, max. span 30 psi, Transparent Cover
Min. span 0.15 psi, max. span 6.0 psi
Min. span 0.15 psi, max. span 6.0 psi, Transparent Cover
Size1/4"
Pressure RangeMin. span 3 psi, max. span 300 psi
Process Connection1/4" NPT female IEC 61518 flange with bleed valves
Ambient Temperature Range-4 to 158°F / -20 to 70°C
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Product Series | PTI40 Premier Accuracy Intelligent Pressure Transmitter |
|---|---|
| Accuracy | ±0.075% of adjusted span with up to 100:1 turn down |
| Output Signal | 4 mA to 20 mA, 2-wire with HART |
| Power Requirement | 12 Vdc to 36 Vdc |
| Stability | <0.1%/year |
| Adjustment | By 1 push button joystick on display or HART® protocol |
| Response Time | <200 ms |
| Service Life | >10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C or Gold plated optional) |
| Brand | NOSHOK |
| Manufacturer Part # | PTI40-300psig-1-43-81-28 |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 304 Stainless Steel housing |
|---|
Performance
| Pressure Range | Min. span 3 psi, max. span 300 psi |
|---|---|
| Environmental Rating | IP66 |
| Ambient Temperature Range | -4 to 158°F / -20 to 70°C |
Connections
| Process Connection | 1/4" NPT female IEC 61518 flange with bleed valves |
|---|---|
| Electrical Connection | 1/2" NPT female |
| Connection Material | 316 Stainless Steel |
