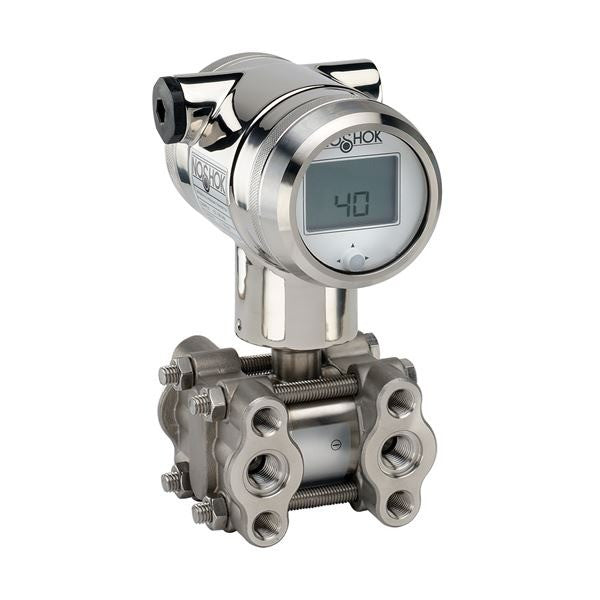

NOSHOK PTI40 Series Premier Accuracy Intelligent Industrial Pressure Transmitter PTI40-6PSIG-1-43-81-28-TC, Min. span 0.15 psi, max. span 6.0 psi, ±0.075% of adjusted span with up to 100:1 turn down, 4 mA to 20 mA, 2-wire with HART, Transparent Cover
SKU:
PTI40-6PSIG-1-43-81-28-TC
Made in the United States
$3,163.99
Price on request
Was: $3,515.12
You Save $351.13
Out of Stock
Size1/4"
Pressure RangeMin. span 0.15 psi, max. span 6.0 psi
Process Connection1/4" NPT female IEC 61518 flange with bleed valves
Ambient Temperature Range-4 to 158 ºF / -20 to 70 ºC
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Product Series | PTI40 Premier Accuracy Intelligent Pressure Transmitter |
|---|---|
| Accuracy | ±0.075% of adjusted span with up to 100:1 turn down |
| Output Signal | 4 mA to 20 mA, 2-wire with HART |
| Power Requirement | 12 Vdc to 36 Vdc |
| Stability | <0.1%/year |
| Adjustment | By 1 push button joystick on display or HART® protocol |
| Response Time | <200 ms |
| Service Life | >10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C or Gold plated optional) |
| Brand | NOSHOK |
| Manufacturer Part # | PTI40-6PSIG-1-43-81-28-TC |
| Size | 1/4" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 304 Stainless Steel housing |
|---|
Performance
| Pressure Range | Min. span 0.15 psi, max. span 6.0 psi |
|---|---|
| Environmental Rating | IP66 |
| Ambient Temperature Range | -4 to 158 ºF / -20 to 70 ºC |
Connections
| Process Connection | 1/4" NPT female IEC 61518 flange with bleed valves |
|---|---|
| Electrical Connection | 1/2" NPT female |
| Connection Material | 316 Stainless Steel |
