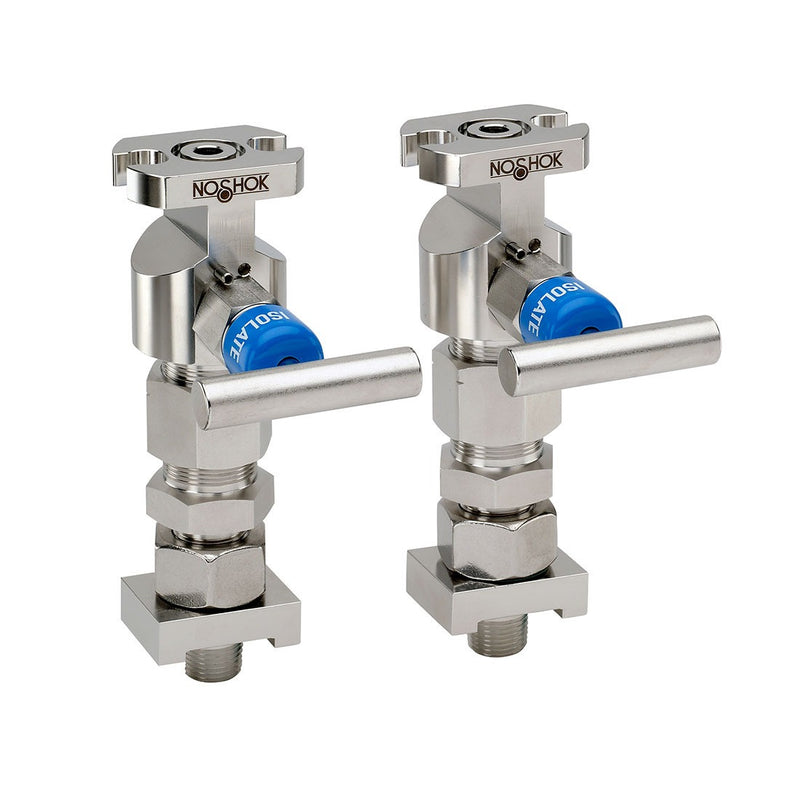

NOSHOK SV Series Stabilized Connectors With Integral Block Valve, Steel/Stainless Steel Stabilized Connector Valve Pair, Adapter Flange
SKU:
NSK-SV-Stabilized-Connectors
Made in the United States
Starting at
$316.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature6,000 psi
Connection TypeNational Pipe Thread (NPT), Flange
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Stabilized Connector |
|---|---|
| Orifice Size | 0.375 in |
| Series | SV |
| Connector Type | Stabilized connector pair with integral valve (For flat installations, orifice fitting) |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-SV-Stabilized-Connectors |
| Country of Origin | Made in the United States |
Materials & Construction
| Material | Steel |
|---|---|
| Stem Seal and Type | All 316 Stainless Steel stems with FKM o-ring and PTFE back-up ring below the threads |
| Bolt Material | Carbon Steel |
Performance
| Flow Coefficient Cv | 3.0 |
|---|---|
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature | 6,000 psi |
Connections
| Connection Type | National Pipe Thread (NPT), Flange |
|---|---|
| Connection Size | 1/2 in |
Dimensions & Weight
| Weight | 10.6 lb |
|---|
Overview
SV Series - Stabilized Connectors With Integral Block Valve
- Block valve and stabilized tap are joined by a coupling nut which allows easy installation and non-rotation of the valve
- Slotted bolt holes allow for 2-1/8" and 2-1/4" bolt spacings
- Designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections
- 0.375" bore for unrestricted passage of process gas
- Patent pending
