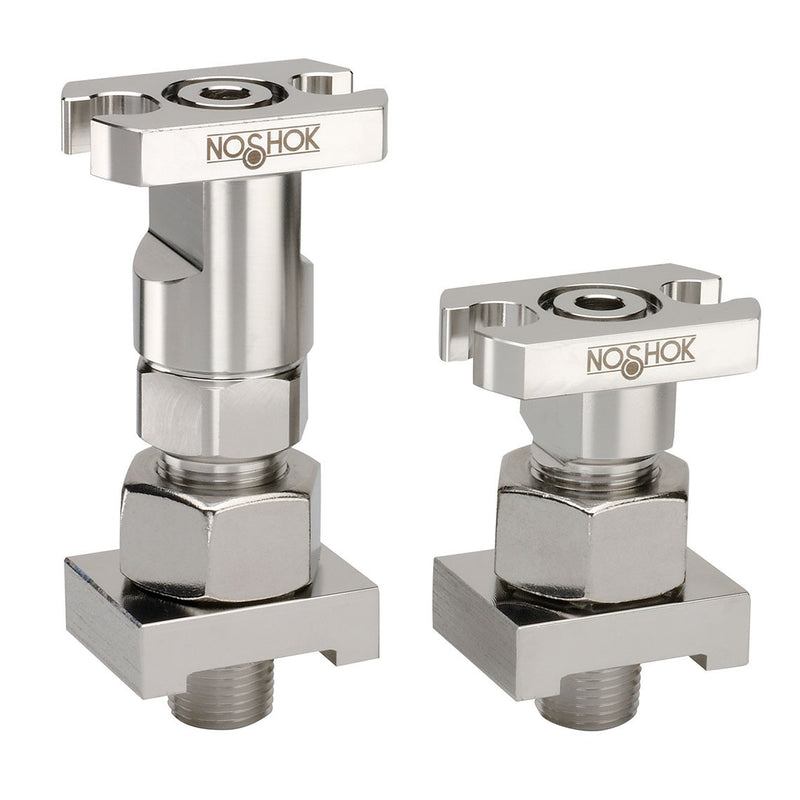

NOSHOK SZ Series Stabilized & Non-Stabilized Connectors, Steel Short/Long Stabilized/Non-Stabilized Connector Pair, Flange Adapter
SKU:
NSK-SZ-Stabilized-Non-Stabilized
Made in the United States
Starting at
$183.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature10,000 psi
Connection TypeNational Pipe Thread (NPT), Flange
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Stabilized Connector |
|---|---|
| Orifice Size | 0.375 in |
| Series | SZ |
| Connector Type | Short stabilized pair (For flat installations, orifice fitting) |
| Warranty | 3 yr |
| Length | 3-3/8 in |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-SZ-Stabilized-Non-Stabilized |
| Country of Origin | Made in the United States |
Materials & Construction
| Material | Steel |
|---|---|
| Bolt Material | Carbon Steel |
Performance
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature | 10,000 psi |
|---|
Connections
| Connection Type | National Pipe Thread (NPT), Flange |
|---|---|
| Connection Size | 1/2 in |
Dimensions & Weight
| Weight | 3.3 lb |
|---|
Overview
SZ Series - Stabilized & Non-Stabilized Connectors
- Slotted bolt holes allow for 2-1/8" and 2-1/4" bolt spacings
- Designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections
- Optional dielectric barrier creates a non-conductive shield between the instrument and the orifice fitting
