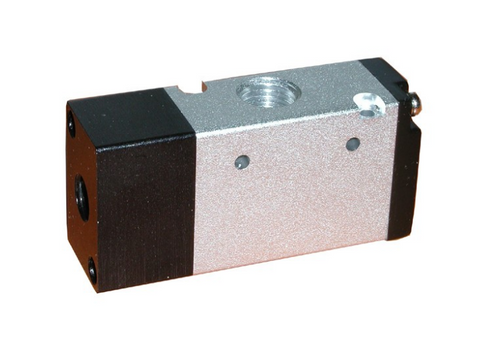

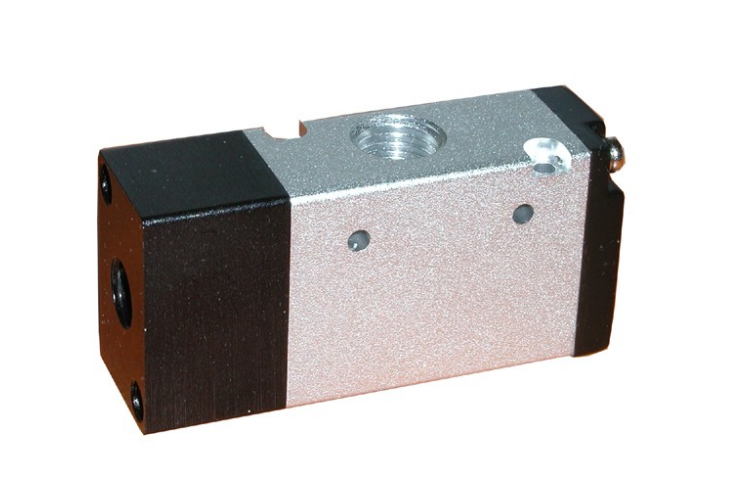

STC 3A110-1/8" NPT Pilot Operated Air Valves- Single Pilot, 3-Way, 2-Position
SKU:
3A110-1/8
$27.99
Price on request
Was: $31.60
You Save $3.61
Available to Order
Size1/8"
Operating Pressure28" Hg to 115PSI
Body MaterialAnodized Aluminum
Operating Temperature-5 to 80°C with non-freezing medium
Port & MountingBody Ported, Stackable (Stacking Hardware Included)
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Description | 3 Way 2 Position Single Pilot Air Valve |
|---|---|
| Action & Motion | Air Piloted, Two Position, 3 Way |
| Working Medium | 40 micron filtered air, inert gas |
| Cv | 0.67 |
| SCFM @ 100 PSI | 25 |
| Brand | STC Valve |
| Manufacturer Part # | 3A110-1/8 |
| Size | 1/8" |
Materials & Construction
| Body Material | Anodized Aluminum |
|---|---|
| Seal Material | NBR (Buna N) |
Performance
| Operating Pressure | 28" Hg to 115PSI |
|---|---|
| Maximum Pressure | 150PSI |
| Operating Temperature | -5 to 80°C with non-freezing medium |
| Pilot Pressure | -40 to 115PSI |
Connections
| Port & Mounting | Body Ported, Stackable (Stacking Hardware Included) |
|---|
