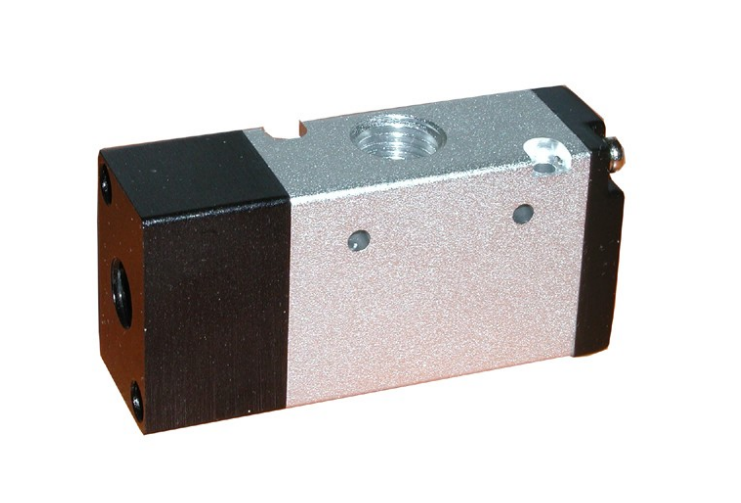

STC 3A410-1/2" NPT Pilot Operated Air Valves- Single Pilot, 3-Way, 2-Position
SKU:
3A410-1/2
$54.99
Price on request
Was: $63.24
You Save $8.25
Available to Order
Size1/2"
Operating Pressure28" Hg to 115PSI
Body MaterialAnodized Aluminum
Operating Temperature-5 to 80°C with non-freezing medium
Port & MountingBody Ported, Stackable (Stacking Hardware Included)
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Description | 3 Way 2 Position Single Pilot Air Valve |
|---|---|
| Action & Motion | Air Piloted, Two Position, 3 Way |
| Working Medium | 40 micron filtered air, inert gas |
| Cv | 2.79 |
| SCFM @ 100 PSI | 160 |
| Brand | STC Valve |
| Manufacturer Part # | 3A410-1/2 |
| Size | 1/2" |
Materials & Construction
| Body Material | Anodized Aluminum |
|---|---|
| Seal Material | NBR (Buna N) |
Performance
| Operating Pressure | 28" Hg to 115PSI |
|---|---|
| Maximum Pressure | 150PSI |
| Operating Temperature | -5 to 80°C with non-freezing medium |
| Pilot Pressure | -40 to 115PSI |
Connections
| Port & Mounting | Body Ported, Stackable (Stacking Hardware Included) |
|---|
