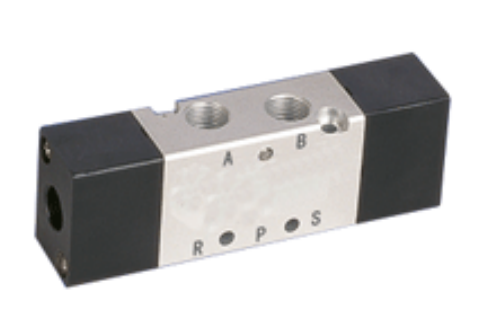

STC 4A230P-1/4 Pilot Operated Air Valves- Double Pilot, Pressure Center, 4-Way, 3-Position
Brand : STC Valve
MSRP: $104.52
Starting At:
$89.99
(You save
$14.53
)
- SKU:
- 4A230P-1/4
- Minimum Purchase:
- 1 unit
- Size:
- 1/4"
- Size Dropdown:
- True
STC 4A230P-1/4 Technical Specifications
Description
4 Way 3 Position Pressure Center Double Pilot Air Valve
Port & Mounting
Body Ported
Action & Motion
Single Air Pilot, Spool Design
Operating Pressure
Valve: 0 to 115 PSI,
Working Medium
Pilot: 40 PSI
Maximum Pressure
1/4 (in/outlet) 1/8 (Exhaust)
Operating Temperature
0.78
Pilot Pressure
53
Body Material
40 micron filtered air, inert gas
Seal Material
Anodized Aluminum
Cv
NBR (Buna N)
SCFM @ 100 PSI
0
