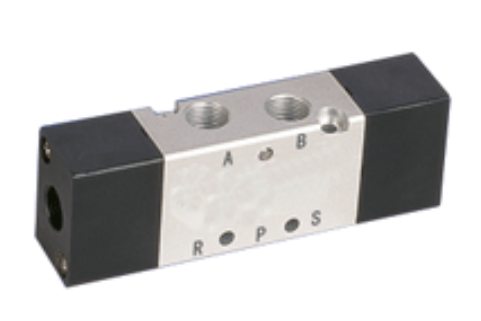

STC 4A330P-3/8 Pilot Operated Air Valves- Double Pilot, Pressure Center, 4-Way, 3-Position
SKU:
4A330P-3/8
$103.99
Price on request
Was: $120.61
You Save $16.62
Available to Order
Size3/8"
Operating PressureValve: 0 to 115 PSI,
Body Material40 micron filtered air, inert gas
Operating Temperature1.68
Port & MountingBody Ported
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Description | 4 Way 3 Position Pressure Center Double Pilot Air Valve |
|---|---|
| Action & Motion | Single Air Pilot, Spool Design |
| Working Medium | Pilot: 40 PSI |
| Cv | NBR (Buna N) |
| SCFM @ 100 PSI | 0 |
| Brand | STC Valve |
| Manufacturer Part # | 4A330P-3/8 |
| Size | 3/8" |
Materials & Construction
| Body Material | 40 micron filtered air, inert gas |
|---|---|
| Seal Material | Anodized Aluminum |
Performance
| Operating Pressure | Valve: 0 to 115 PSI, |
|---|---|
| Maximum Pressure | 3/8 (in/outlet) 1/4 (Exhaust) |
| Operating Temperature | 1.68 |
| Pilot Pressure | 80 |
Connections
| Port & Mounting | Body Ported |
|---|
