Globe valves are the throttling workhorse for clean, hot, high-pressure service. Diaphragm valves handle dirty, corrosive, and sanitary duty below roughly 200 psi. That's the short answer, and 60+ years experience of selling both valve types stand behind it. The longer answer depends on your media, your pressure, your control loop, and your budget for installation and maintenance. This guide works through each factor including the pressure-drop math, the elastomer limits, and a decision checklist at the end. By the last section you should be able to spec these valves yourself.
How Each Valve Works

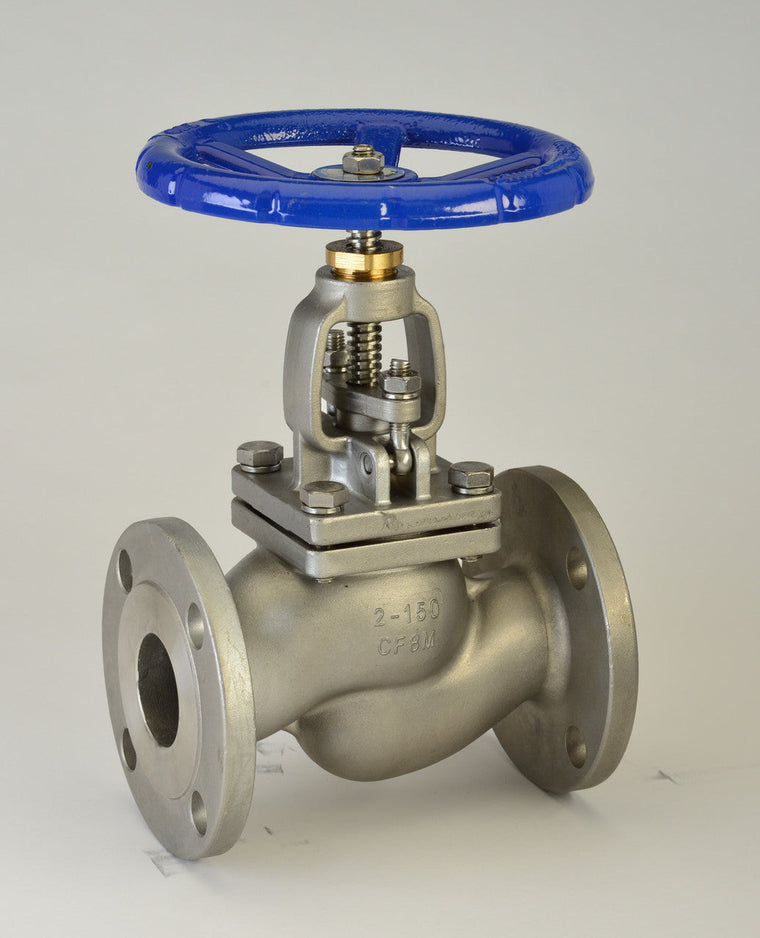

Globe Valve: Rigid Plug, Characterized Trim
A globe valve throttles by driving a solid disc or plug located at the end of a threaded stem perpendicular to a stationary seat. Flow enters below the seat, turns up through the seat ring, and turns again toward the outlet. That S-shaped path is where the globe valve's head loss comes from, and it's what makes the valve controllable. Every increment of stem travel produces a repeatable change in flow area.
Globe valve characterized trim selection fine-tunes the valve response. Quick-opening trim options pass most of the flow in the first portion of travel and suits on/off and fast-dump duty. Linear trim gives flow roughly proportional to stem lift and works where the pressure drop across the valve stays fairly constant. Equal-percentage trim gives fine resolution near the seat and wide rangeability, which is why it dominates modulating control in steam and process loops. See the globe valves collection.
Diaphragm Valve: Flexible Membrane, Isolated Bonnet
A diaphragm valve presses a flexible membrane, typically EPDM, NBR, FKM, or a PTFE-faced elastomer, down against the body. In a weir-type valve, the diaphragm seats on a raised dam cast into the body, which shortens diaphragm travel and makes throttling and tight shutoff practical. In a straight-through (full-bore) valve, the diaphragm lifts clear of an unobstructed bore, which suits slurries and lines that must drain completely.
The detail that drives everything else in this comparison sits in the bonnet. The diaphragm itself seals the process fluid away from the stem, the compressor, and the actuator. There's no stuffing box and no stem packing to leak, adjust, or contaminate.
Throttling and Flow Control
For precise modulating control, specify a globe valve. A rigid plug against a machined seat holds a repeatable position, and characterized trim shapes the valve characteristic curve to match your process needs.
A weir-type diaphragm valve does throttle acceptably through the middle of its stroke, and for chemical feed, water treatment, and manual balancing duty that band is usually enough. Control degrades near the closed position because the elastomer deflects nonlinearly against the weir. Small handwheel or actuator movements produce inconsistent flow changes right where a control loop needs consistency most.
Pressure drop is the other half of the flow control story. Head loss through a valve follows dP = (Q/Cv)² × SG, and the squared term punishes low-Cv designs hard. Run the arithmetic on two flow coefficients. Push 100 GPM of water (SG = 1.0) through a valve with a Cv of 40 and you burn (100/40)² × 1.0 = 6.25 psi. Push the same 100 GPM through a valve with a Cv of 90 and the loss falls to about 1.2 psi. The globe's S-path costs it Cv relative to a straight-through design of the same size, so pull the actual Cv from each manufacturer's datasheet and run this exact calculation before you buy. On a pump discharge running around the clock, a few psi of standing loss becomes real electricity cost.
Our recommendation is simple. When considering throttling and flow control, select a globe valve for a process where a controller modulates the valve continuously, and use a weir-type diaphragm valve where throttling is occasional and mid-range.
Not sure which valve or trim fits your control loop? Talk to a ValveMan engineer at 888-825-8800 — real engineers, not a call center — and we'll match the flow curve to your service.
Media and Contamination
Dirty and aggressive fluids flip the decision, here diaphragm valves are strongly recommended. Entrained solids that would score a globe's plug and seat get sealed over by a flexible diaphragm, so slurries, abrasive process water, viscous fluids, and crystallizing chemicals all run cleaner through a diaphragm valve. Body options extend the chemistry range further: stainless steel, cast and ductile iron, rubber-lined and PTFE/PFA-lined iron, plus solid plastics in PVC, CPVC, PP, and PVDF for corrosive low-pressure service. A PVC-bodied unit will outlast an alloy globe valve on hypochlorite duty for a fraction of the price. Browse the diaphragm valves collection.
Fugitive emissions follow the same logic. Because the diaphragm isolates the media from every drive part, there is no packing gland and no stem leak path for toxic or corrosive vapor to escape through. On a globe valve handling the same media, the packing is a wear item exposed to the process, and every repacking is an exposure event for maintenance staff.
Hygienic service belongs to the diaphragm valve almost by default. Weir-type bodies with tri-clamp ends and CIP-compatible diaphragms are the standard in pharma, food, and biotech, and mounting the valve at the manufacturer's specified drain angle lets the line empty completely between batches. Browse sanitary diaphragm valves built for that exact duty.
Keep globe valves on clean fluids; solids erode the seat, throttling near the seat accelerates wire-draw, and particulates may work into the packing.
Working out a body and diaphragm combination for a corrosive line? Give us your chemistry and temperature at 888-825-8800 or through our contact page, and we'll spec a valve that lasts.
Pressure and Temperature Limits
When it comes to extreme pressure and temperature, the globe valve takes back the advantage. A quality weir-type diaphragm valve typically runs from full vacuum to roughly 200 psi and about -30 to 350°F, in sizes from 1/2 through 12 inches, with bubble-tight shutoff that holds independent of line pressure. Many standard weir-type units carry lower ratings, closer to 6 - 10 bar (roughly 90 - 150 psi), which derates as temperature climbs. The diaphragm material sets the working limit long before the valve body does. As a family, NBR suits oils, EPDM suits water and dilute chemicals, FKM extends the chemical and temperature range, and PTFE-faced diaphragms cover the harshest chemistry at the top of the envelope.
Globe valves carry ANSI/ASME pressure-class ratings and metal trim, which puts high-pressure and high-temperature service, including steam distribution, squarely in their territory. The class system scales from general utility duty up to severe power-plant conditions, far beyond anything an elastomer can survive.
Steam settles the argument on its own. Saturated steam at just 50 psig sits near 298°F on the steam tables, already crowding the ceiling of most diaphragm materials, and also diaphragm life collapses under that kind of heat cycling. Specify a globe valve for steam isolation and throttling, with equal-percentage trim for modulating service. We consider this one non-negotiable.
Cost, Installation, and End Connections
What You're Actually Paying For
On purchase price, plastic and iron-bodied diaphragm valves sit at the low end of the scale, lined and sanitary stainless versions climb from there, and globe valve costs scale with pressure class and body material selection. Comparing bare bodies can be misleading, though. Total installed cost considers the body plus actuation plus the spares, and the spares differ in kind: a diaphragm valve needs spare diaphragms on hand as consumables, while a globe valve needs packing sets and eventually replacement trim. Budget both sides honestly and the comparison usually tracks the service conditions rather than the sticker price.
End Connections and Orientation
Globe valves typically arrive flanged, threaded NPT, or socket-weld. Diaphragm valves may also be flanged or threaded, however tri-clamp sanitary ends and true-union connection options make in-line service on some diaphragm valve models genuinely fast.
Orientation matters more for the diaphragm valve: in sanitary duty, a weir-type body must be mounted at the specified drain angle so that no pocket of product ponds at the weir. A globe valve typically installs in any orientation, but respect the flow-direction arrow on the body and leave stem clearance above the bonnet for maintenance. Note that angle globe valve designs are available, these incorporate an inlet and outlet positioned at 90 degrees to one another, incorporating a directional pipe turn within the valve itself.
Actuation and Fail-Safe
Multiple actuation options are possible for both valve types, from manual to electric and pneumatic. Pneumatic actuators with spring return are a natural match for diaphragm valves, and the spring gives you a true fail-open or fail-closed position on air loss, which matters in applications like chemical feed lines. Globe valves take multi-turn electric actuators for isolation or modulating control duty. Pneumatic actuators with positioners may also be used for modulating control globe valves. Typically, if your control loop needs a positioner and a characterized response, that requirement alone points towards a globe valve.
Maintenance: Consumable vs Overhaul
Treat the diaphragm as a planned consumable and the economics get predictable. The diaphragm is the main wear part by design, and replacement is a top-entry job done while the valve remains in the line, using ordinary hand tools. Set the replacement interval from the manufacturer's cycle data and considering your service severity, keep enough spare diaphragms in the storeroom, and unplanned failures largely disappear. Watch for diaphragm fatigue cracking at the flexure line and for permeation when dealing with aggressive solvents.
Globe valve upkeep looks different. Stem packing needs periodic adjustment and eventual repacking, and seats need lapping or trim replacement after erosion or wire-draw when throttling near the closed position. None of that is difficult, but seat work usually means pulling the valve and sending it to the workshop. Over a ten-year horizon, dirty or corrosive low-pressure service favors diaphragm valve economics, while hot, clean, high-pressure service favors the globe valve, which can run for years on packing adjustments alone.
Decision Checklist: Match the Valve to the Service
Run your service conditions down this list in order, to help you select the valve best-suited to your application.
If the media carries solids, slurry, or aggressive chemistry at low pressure, choose a diaphragm valve.
If line pressure exceeds roughly 200 psi, the diaphragm valve is out of its envelope. Choose a globe valve.
If the service is steam or runs hot, choose a globe valve with metal trim.
If a controller modulates the valve continuously and the valve is required to produce a suitable flow characteristic, choose a globe valve with trim that is matched to the system requirements.
If the duty is sanitary, choose a weir-type diaphragm valve for sanitary applications, and make sure that the valve is mounted at the drain angle
