The Best Valves for Methanol

Methanol flashes at about 11°C (roughly 52°F), which means it's above its flash point sitting in a tank on a mild spring day. It burns with a flame you can barely see in daylight. A dose of roughly 30 mL will kill an adult. When a methanol valve weeps at the stem, you have a toxic, invisible fire hazard pooling on the floor, and nobody may notice until something ignites it.

The pressure and temperature side of the job is easy. Typical methanol service runs about 1 to 40 bar, from −40°C in hydrate-inhibition injection duty up to around 65°C in storage. A Class 150 steel valve shrugs at that envelope. What kills methanol valves is chemistry and leakage: the wrong elastomer swells to uselessness, the wrong metal corrodes galvanically, and methanol's low viscosity lets it slip through packing that would hold diesel for years.

This guide follows three questions in order. Which materials survive contact with methanol? How do you control the three separate leak paths? And which valve goes where in a transfer system? We'll finish with a complete line-by-line spec for a 2-inch transfer valve that you can defend in a design review.

Body Materials: Carbon Steel vs 316 Stainless, and the Metals to Ban

The Default and the Upgrade Trigger

Plain carbon steel is the standard body material for dry methanol. A WCB cast body or an A105 forged body handles neat methanol fine, and the Methanol Institute's own materials guidance backs that position. Dry methanol does very little to carbon steel.

Wet methanol is a different fluid. Once moisture and inorganic salts enter the stream, methanol turns corrosive to carbon steel, and that's the trigger to upgrade to 316 or 316L stainless, the molybdenum-stabilized low-carbon 300-series grades. Water finds its way into methanol systems constantly. Methanol absorbs it from the air, tank breathing pulls in humid atmosphere, and upstream process upsets send wet product down the line.

Our recommendation after 60+ years of spec'ing valves: put 316 trim on carbon steel bodies even when the process datasheet says dry. A 316 ball and stem on a WCB body costs a fraction of a full stainless valve and buys you insurance against the moisture upset the datasheet never predicted. If the stream is known-wet, or if you're washing the line with water between batches, go full CF8M (cast 316) and stop thinking about it.

One more flag for upstream oil and gas buyers. When methanol is injected into sour gas systems for hydrate control, the valve lives in H2S territory, and NACE MR0175 material requirements come into play on top of everything in this article. Flag it on the PO and let your supplier confirm compliant trim.

Dry or wet, sour or sweet? If you're not certain which way your stream breaks, talk to a ValveMan engineer — real engineers, not a call center — at 888-825-8800 before you lock the body material.

Metals to Keep Out

Methanol conducts electricity. Most hydrocarbons are insulators, so a fitter who has spent a career on fuel and solvent lines won't expect galvanic corrosion. Methanol delivers it. Couple an aluminum component to carbon or stainless steel anywhere in a methanol system and you've built a battery: the conductive methanol is the electrolyte, the two dissimilar metals are the electrodes, and the aluminum sacrifices itself. That lightweight aluminum valve looks like a bargain until it's thinning from the inside.

Keep titanium out of dry anhydrous methanol too, per the Methanol Institute's metals compatibility guidance. That one surprises people because titanium survives seawater and chlorides that destroy stainless. Methanol chemistry has its own rules.

Cast iron comes up constantly; a well-known eng-tips thread on methanol valves is basically one long argument about it. Our position is simple. We won't put a brittle-bodied valve on any flammable service, methanol included. A cast iron body that takes a fork-truck hit or a hard water-hammer event can crack and release inventory all at once, where a steel body dents and keeps sealing. Spec cast or forged steel and move on. Brass, bronze, and zinc or galvanized coatings get the same treatment from us on methanol lines: keep them off the system unless the Methanol Institute guidance specifically clears the alloy for your conditions.

Seats and Seals: PTFE Wins, Standard Viton Fails

Fluoropolymers are the answer in methanol, full stop. PTFE, PFA, PVDF, and PTFE-encapsulated seals are all compatible. In methanol service, PTFE is good to roughly 120°C and PFA to roughly 180°C, and since methanol storage and transfer tops out around 65°C, you have better than 50°C of margin with plain PTFE. Reinforced PTFE (RPTFE) and TFM 1600 give you the same chemistry with better cold-flow resistance and higher pressure ratings at the seat, which is why they're our default ball valve seat spec for this service.

Now the trap that catches more methanol buyers than any other: standard Viton. Viton A-type FKM is the reflex O-ring and seat choice across half of industry, and in methanol it fails badly. Chemours, the company that makes Viton, measured about 90% volume swell in A-type Viton exposed to methanol. The swell becomes significant at methanol concentrations above 20 to 30%, so even blended streams get you. The failure sequence is predictable. The seat or O-ring absorbs methanol and swells. Operating torque climbs as the swollen seat grips the ball. Then the softened, oversized elastomer extrudes into clearances, tears, and the valve leaks through and past the stem at the same time. We've seen quarter-turn valves seize outright from seat swell.

Where you genuinely need an elastomer, in injection check valves or metering hardware with dynamic O-rings, ask about Viton GF and FFKM compounds such as Kalrez. Confirm the specific compound with the seal manufacturer against your actual stream before you buy, because "Viton" on a datasheet tells you nothing about the grade inside.

There's a second, slower failure mode that spec sheets never show. Methanol is a small molecule, and small molecules migrate through elastomer walls over time even when the compound shows acceptable swell numbers. The pump world documents this permeation problem; the valve world mostly ignores it. It's one more reason a fluoropolymer seat beats rubber in this service. Acetone punishes elastomers in a similar way, and our guide to the best valves for acetone walks the same seat-selection logic for that solvent.

For methanol, spec RPTFE or TFM 1600 seats on ball valves, PTFE-based sealing everywhere else, and specialty elastomers only where a fluoropolymer physically can't do the job. Not sure which seat compound your blend calls for? Send us the stream details at 888-825-8800 and we'll match the fluoropolymer or specialty elastomer to your actual concentration.

Leakage Control: Seat, Stem, and Flange Are Three Different Problems

"Leak-tight" is three separate specifications. A valve can pass a seat test and still gas off methanol at the stem all day. Specify all three paths.

Seat Leakage

Seat leakage is flow past the closed valve into the downstream line. On methanol isolation duty, spec bubble-tight Class VI shutoff, which a quality soft-seated ball valve delivers as a matter of course. The justification is methanol's invisible flame. A seat that passes a slow dribble into a blinded-off loading arm can create a burning pool that a person walks into before anyone sees fire. Metal-seated valves with their allowable seat leakage rates belong in abrasive and high-temperature services, and methanol transfer is neither.

Stem Leakage

The stem is the leak path that matters most in methanol service, and the packing material decision is already settled. The Methanol Institute's compatibility guidance states that graphite packing offers a much wider operating window and better service life than elastomer compounds in methanol sealing. Flexible graphite stem packing is the spec. It covers the full −40°C to 65°C service window without the swell and permeation problems of rubber.

For proof the packing performs, lean on API 622, the qualification standard for valve stem packing in fugitive-emission service. The test is brutal and specific: 1,510 mechanical cycles and 5 thermal cycles at 40 bar methane, with leakage capped at 100 ppm and no retorques allowed for the entire test. That no-retorque clause is the part to appreciate. It means the packing holds its seal without a maintenance tech chasing gland bolts, which is exactly what you want on a valve in a methanol tank farm nobody visits weekly. API 624 applies the equivalent valve-level test to rising-stem valves and API 641 to quarter-turn valves, while ISO 15848-1 is the international route to the same assurance. Put "API 641 low-emission" on a methanol ball valve PO and you've bought tested stem sealing instead of a brochure promise.

Two refinements for harder duty. Frequent-cycling valves, such as automated loading valves, benefit from live-loaded packing, where Belleville springs maintain gland pressure as the packing wears. True zero-emission duty calls for bellows-sealed stems, which replace the packing leak path with a welded metal barrier. Regardless of packing style, gland maintenance discipline decides real-world emissions; our valve maintenance best practice guide covers the inspection habits that keep stems tight.

Flange Leakage

The gasket is a valve-adjacent decision that follows the same chemistry rules. Graphite and PTFE-based gasket materials are the methanol-compatible choices, consistent with the seal guidance above. Our field default is spiral-wound with flexible graphite filler on steel raised-face flanges. It forgives imperfect flange faces and uneven bolt-up better than sheet gasket, and bolt-up discipline, meaning proper torque sequence and calibrated tools, matters as much as the gasket itself.

Fire-Safe and Anti-Static Requirements

Two certifications belong on every methanol isolation valve purchase order.

The first is API 607 fire-safe certification. Given methanol's 11°C flash point and invisible flame, fire-safe soft-seated valves are mandatory practice on methanol lines. The certification means the valve design survived an actual fire test: the soft seats are burned away and the valve must still hold acceptable seal through secondary metal-to-metal contact, with the stem and body joints staying tight. Without it, a fire that destroys a PTFE seat turns every valve in the affected area into an open feed line pouring fuel on the fire. Cite API 608 alongside it on ball valve POs; that's the construction standard that governs how the valve is built, while 607 certifies how it fails.

The second requirement is anti-static design. Because methanol is conductive and flows at low viscosity, a moving stream can generate static charge on an isolated ball or stem. Anti-static construction requires electrical continuity of 10^6 ohms or less between the body and the closure parts, usually achieved with small spring-loaded contact plungers between stem and ball and between stem and body. The charge drains harmlessly to ground through the pipework instead of accumulating until it arcs inside a vapor space. At the system level, the same logic drives grounding and bonding procedures during tank truck loading and unloading; the anti-static valve is one link in that chain, and the truck bonding cable is another.

Want a methanol isolation valve that carries both certifications on paper, not just in the sales pitch? Call a ValveMan engineer at 888-825-8800 and we'll confirm the API 607 and anti-static documentation before you commit.

Valve Types by Job in a Methanol Transfer System

Match the valve type to the function first, then apply everything above to each one.

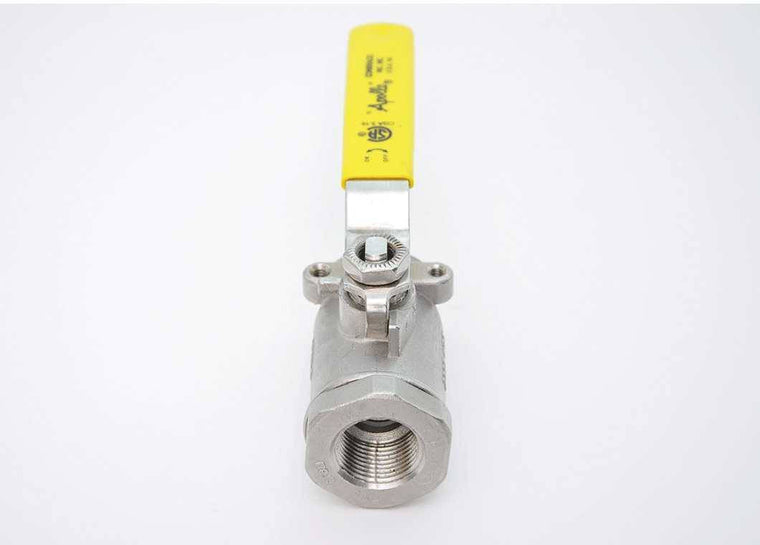

Isolation at tanks, pumps, and loading arms belongs to quarter-turn ball valves: carbon steel or 316 body per the moisture rule, RPTFE or TFM seats, flexible graphite packing, API 607 fire-safe, API 641 low-emission, anti-static. If you're comparing manufacturers for the duty, our rundown of the top 10 best ball valves by model and manufacturer is a sensible starting point before you apply the methanol trim rules.

Throttling is a different job. A ball valve cracked open to control flow erodes its own seats and chatters, so put a globe or control valve with graphite packing on any line that needs flow adjustment, and keep the ball valves fully open or fully closed.

Backflow prevention earns its place on every transfer and loading line, because a methanol tank draining backward through a stopped pump is an incident report waiting to be written. Spring-assisted designs make sense on low-head gravity discharge where there's little pressure to slam a swing check closed. Our guide to the top 10 best check valves covers the design trade-offs.

Dosing and injection, such as methanol injection for hydrate inhibition at −40°C or carbon dosing in wastewater treatment, calls for solenoid valves or small actuated ball valves with PTFE or confirmed FFKM internals. The choice between the two depends on duty cycle and flow, and we've compared them directly in our article on using an actuated ball valve or a solenoid valve for fluid control.

For actuation on transfer skids, pneumatic actuators are the default in flammable areas because compressed air carries no ignition source. Specify electric actuation only with enclosures rated for the hazardous location, Class I Division II at minimum, and verified against your site's area classification. Tank outlet valves get spring-return fail-closed actuators so a lost air supply or signal leaves the inventory bottled up.

Worked Example: Specifying a 2-Inch Methanol Transfer Line Valve

Put it all together for a manual isolation valve on a 2-inch methanol transfer line from a storage tank to a loading pump.

One more decision: port size. For a gravity-fed tank transfer, the available head is low, so every bit of pressure drop through the valve costs you flow rate. A full-port ball valve keeps the bore at line size and adds almost nothing to system resistance, while a standard port necks the flow path down roughly a pipe size and spends head you don't have. On pumped lines with pressure to spare, standard port is fine and saves money. On gravity discharge, spec full port.

Every line in that table traces to methanol's specific chemistry and hazards. A valve that's excellent for water or compressed air can be a liability on this fluid.

Spec It Right the First Time

Methanol punishes the wrong elastomer, the wrong metal, and the wrong packing, and the failures are toxic, invisible, and flammable. If your application has wrinkles — blended streams, sour-gas injection, cryogenic inhibition duty, or an area classification question — talk it through with our team in Exton, PA before you buy. You get real engineers, not a call center.

Call 888-825-8800 or send us the application details, and we'll help you pin down the right spec for your methanol service.
