Bolt a dry pressure gauge onto a reciprocating pump discharge and you'll be replacing it within months. Put a glycerin-filled gauge on an oxygen line and you've built a fire hazard. Both gauges are the right product somewhere, and after 60+ years of specifying instrumentation for industrial systems, we can tell you exactly where. Liquid fill wins anywhere there's vibration, pulsation, or weather. Dry wins on clean, calm, indoor service where you'd rather keep the money. The rest of this article is the detail that lets you defend that spec to your boss.
How the Two Gauge Types Work (and Why the Fill Fluid Matters)

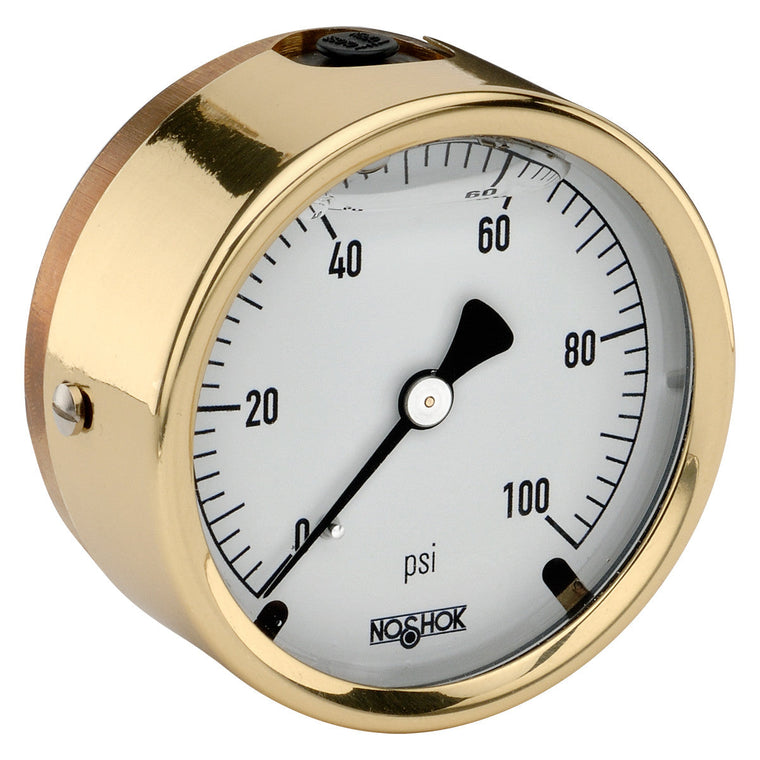

Take the case off either type and you'll find the same guts: a Bourdon tube that uncurls as pressure rises, a link, gears, and a pointer. The difference is what surrounds these components. A dry gauge case holds air. A liquid-filled pressure gauge case holds glycerin, a glycerin-water mix, silicone oil, or halocarbon fluid.
The fluid earns its keep three ways. It damps pointer motion so the needle holds steady under vibration and pulsation. It bathes the links, pivots, and pinions in lubricant, which slows mechanical wear. And it occupies the case, so humid air and corrosive products can't get in and condense on the internals.
Cases are filled to about 80–90% of their volume, never to the top. The fluid expands as ambient temperature climbs, and that air pocket gives it somewhere to go. The pocket also explains a step installers skip constantly. Every filled gauge ships with a sealed fill plug, and after you mount the gauge you're supposed to cut the vent nipple or flip the vent lever so the case can breathe. Leave it sealed and temperature swings will pressurize the case itself. We'll discuss what that does to your pressure reading later in this article.
Vibration and Pulsation: The #1 Gauge Killer
Vibration and pulsation destroy more pressure gauges than any other cause. In a dry gauge, every pulse from the process slams the gauge internals back and forth. The pointer flutters, the geared linkage hammers itself, and over time the links, pivots, and pinions wear until the gauge reads wrong or fails entirely. A worn movement (the internal gear and linkage mechanism) fails quietly, which is the dangerous part. The gauge still points at a number.
Think about where gauges actually live. Reciprocating pump discharge lines pulse with every stroke. Compressor skids buzz constantly. Plenty of gauges hang directly off live piping with no isolation at all. On any of these, a dry gauge is a consumable.
Case fill changes the physics. The fluid resists rapid pointer movement, so instead of a blur swinging across 20 psi of dial, the operator sees a steady, readable needle. The same damping slows wear on the movement. That single property is why filled gauges dominate on rotating and reciprocating equipment.
When Fill Alone Won't Fix It
Severe pulsation can overwhelm case damping. The fill fluid steadies the pointer but does nothing about the pressure spikes arriving through the Bourdon tube itself. The fix is a snubber or pulsation dampener threaded in ahead of the gauge to choke the pulses down before they reach the tube. These devices stack with liquid fill. On reciprocating pump discharge our standing recommendation is a filled gauge plus a snubber, every time.
Slurries, viscous fluids, and crystallizing media are a different problem. They plug the Bourdon tube. There the answer is a diaphragm seal, which isolates the gauge behind a flexible diaphragm and a captive fill so process fluid never enters the element. Diaphragm seals also pair fine with liquid-filled gauges.
Fighting pulsation on a pump skid and not sure whether you need fill, a snubber, a seal, or all three? Talk to a ValveMan engineer at 888-825-8800. If your job calls for reading pressure difference across a filter or strainer, our differential pressure gauges cover that service, and for panel readout or remote signal a gauge pressure transmitter handles it.
Temperature and Weather: Where Gauges Fog, Freeze, and Fail
Outdoor and washdown service exposes the dry gauge's weakness. Ambient air inside the case carries moisture, and when the temperature drops, that moisture condenses on the inside of the window. Now the operator can't read the dial. Drop below freezing and the condensation ices up, which can lock the movement outright. A filled case has no room for ambient air, so the window stays clear in the rain, in the washdown bay, and through the winter.
Picking the Fill Fluid by Ambient Temperature
Fill fluid has its own temperature limits, and this is where most buyers get burned. Pure glycerin thickens noticeably below about +17°C (63°F), and a standard glycerin-filled gauge can stop functioning around −5°C (23°F). That's a mild frost. A glycerin gauge that reads beautifully in July can sit sluggish and useless in January.
For cold climates, a 2:1 glycerin-water mix works down to roughly −46°C (−51°F). Silicone oil covers the extremes on both ends and is the standard choice for ambient temperatures above +60°C (140°F) or below −20°C (−4°F). Straight glycerin suits moderate, indoor-adjacent ambient conditions. Our position; if the gauge lives outdoors anywhere that sees a real winter, spec glycerin-water or silicone from day one instead of finding out the heard way in February.
Give us the ambient range your gauge will see and we'll match the fill fluid to it. Call the team in Exton, PA at 888-825-8800, or reach us here and we'll spec it with you.
The Sealed-Case Reading Error
If the case stays factory-sealed after installation, the trapped air pocket and the fill fluid expand and contract with ambient temperature, and the case pressure rises and falls with them. That case pressure acts on the outside of the Bourdon tube and offsets the pressure reading. It's the most common reason a brand-new liquid-filled pressure gauge reads a few psi off right out of the box. Vent the plug after mounting and the case equalizes to atmosphere, and the error disappears.
Media and Safety: When Glycerin Fill Is a Hazard
One hard rule before anything else: never put a glycerin-filled gauge on oxygen or chlorine service. Glycerin is combustible, and in contact with a strong oxidizer it becomes a fire and explosion risk. If the fill ever weeps past a fitting or a cracked seal into the process, you've introduced a potential fuel source where you'd least want it.
For oxygen and other oxidizer services, spec a dry gauge or a fill approved for the media. And if you're gauging below atmospheric, don't force a pressure gauge to do the job — our vacuum gauges read that range directly.
