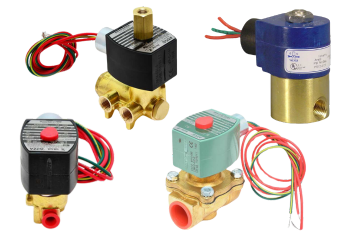

A solenoid coil is a spool of magnet wire around a hollow armature tube. Energize it, and the magnetic field pulls a plunger up the tube against a spring and against line pressure. De-energize it, and the spring shoves the plunger back. That one motion opens or closes the valve, and everything about coil selection comes down to making that motion happen reliably without cooking the wire.
Buyers underestimate one thing: the coil is the wear item. A well-applied valve body will outlast several coils, and in our 60+ years of selling and cross-referencing valves, the single most common reason a coil dies early is a voltage mismatch. Wrong type (AC where DC belongs), wrong value (12V coil on a 24V supply), or wrong frequency (50Hz coil on 60Hz line power). Get the electrical spec right and the coil becomes a boring, long-lived component.
⚙️ Key Takeaways
- Match coil type, voltage, and frequency exactly.
- AC coils provide strong pull-in but must be sized and maintained carefully.
- DC coils suit many modern control applications—but need surge protection.
- Choose the voltage around the application, then verify the entire coil specification.
AC and DC coils are built differently on the inside. An AC coil uses a laminated iron core to limit eddy-current losses; a DC coil uses a solid core. That construction difference drives nearly every behavior we cover below, from inrush current to hum to burnout modes. The four voltages you'll actually specify in North American process and fluid-control work are 12VDC, 24VDC, 24VAC, and 120VAC, so those are the four this guide maps.
AC Solenoid Coils: Inrush, Holding Current, and the Burnout Trap
An AC coil's current draw depends on where the plunger is. With the plunger retracted at the start of the stroke, the coil's impedance is low and current is high. As the plunger seats and closes the magnetic circuit, impedance rises and current falls to a much lower holding level. On a U-shaped AC solenoid, that inrush current can run 10 to 15 times the holding current. However, the inrush-to-holding ratio is coil-family-specific, not a universal 10–15× value. Use the manufacturer’s inrush and holding VA/current values when sizing transformers and control circuits; Parker and Danfoss, for example, publish them separately for applicable coil families
The high inrush is a genuine advantage. It gives an AC coil a hard initial pull right when the plunger needs the most force to break away against pressure. It's also the trap. If the plunger can't seat because of debris in the armature tube, a bent plunger, or media the valve was never rated for, the impedance never rises. The coil sits at inrush-level current, overheats, and burns out. On a jammed AC valve, coil death is a matter of time, and usually a short time.
You'll hear the warning before the failure. AC coils hum at line frequency because the attraction force pulsates 50 or 60 times a second; a copper shading ring on the core face damps the vibration and keeps a healthy coil to a faint buzz. A loud, angry buzz means the plunger isn't seating and the coil is running at inrush. Kill power and find the jam before you re-energize. Danfoss notes that hum occurs on 50/60 Hz AC applications and directs users to inspect the armature and armature tube for contamination or wear.
Let's look at two more AC-specific rules. AC coils are frequency-specific: run a 50Hz coil on a 60Hz supply, or the reverse, and it operates off-design and can overheat or fail. This bites hardest on imported machinery and on equipment built for export. AC coil power is also rated in volt-amperes (VA) rather than Watts, and the number that matters for circuit design is the inrush VA. That distinction becomes expensive when you size a transformer, which we'll get to in the 24VAC section.
DC Solenoid Coils: Constant Current, Quiet Operation, and Flyback Spikes
DC behavior is simpler. Current through a DC coil is set by coil resistance alone, plain Ohm's law: I = V/R. The plunger's position doesn't change the draw. There is no inrush spike and no holding-current drop. A stuck plunger on a DC valve is still a problem for your process, but it doesn't cook the coil the way it does on AC, because the current never rises above design. On dirty media, unstrained water, or any line where a jam is plausible, that fault tolerance alone is usually enough to justify specifying DC.
DC coils are much quieter. With steady current, there's no pulsating attraction force, so there's no hum and no shading ring, and the core is solid rather than laminated. Power is rated in watts. Check the duty cycle rating on the label: a continuous-duty coil can stay energized indefinitely, while an intermittent-duty coil must be de-energized on a schedule to shed heat. For process valves that may hold open for hours, specify continuous duty and don't gamble.
The one hazard DC introduces is flyback. When you de-energize a DC coil, the collapsing magnetic field can spike several hundred volts back into the circuit. A relay contact shrugs that off. A PLC transistor output card doesn't, and a few hundred switching cycles can quietly kill it. Fit a flyback diode across the coil, or specify a DIN 43650 connector with built-in suppression. It costs pocket change and protects an output card that doesn't.
Because the current is fixed by resistance, DC actuation timing is also consistent shot to shot, which matters on dosing and batching work where repeatability beats raw speed.
The Worked Numbers: Why Overvoltage Kills Coils (V²/R)
Coil heating follows P = V²/R, and the squared term is what kills coils. Doubling voltage quadruples the power dissipated in the same winding.
Walk through a real case. A 12VDC coil wound at 12 ohms draws 1 amp and dissipates 12 watts, which is what its insulation and its heat path into the armature tube were designed for. Load that same coil on a 24VDC supply, and it draws 2 amps and dissipates 48 watts. That's roughly 4x design power in a package built to shed 12. The valve will snap open smartly, run hot enough to smell within minutes, and the winding will fail in short order. We take cross-reference calls on exactly this failure every year, usually after someone grabbed the nearest coil off a shelf during a 2 a.m. breakdown.
Undervoltage fails differently. Most coils carry a ±10% voltage tolerance, so a 120V coil operates correctly anywhere from 108V to 132V. A nominal 110V supply sits inside that window and works, though pull-in will be at the slow end of spec. The trouble starts when actual line voltage sags below 108V under load. On DC, you get sluggish or failed pull-in. On AC it's worse: a plunger that can't complete its stroke holds the coil at inrush current, and you're back in the burnout trap from the low side.
That gives you a clean diagnostic split. A coil that burns out in days or weeks points to overvoltage, a jammed plunger on AC, or a frequency mismatch. A valve that buzzes, chatters, or won't shift against full pressure points to supply sag below the tolerance band. Put a meter on the coil terminals under load before you condemn the valve.
Matching Voltage to the Application: 12VDC, 24VDC, 24VAC, 120VAC
12VDC: Mobile, Battery, and Solar
Specify 12VDC when the supply already exists: vehicles, mobile equipment, battery banks, off-grid solar sites. The physics penalty is current. Since P = VI, a given wattage at 12V draws twice the amps it would at 24V, so wire gauge and voltage drop over long runs matter twice as much. On any new fixed installation with a choice, we'd steer you to 24VDC instead.
24VDC: The PLC and Control-Panel Standard
For new automation, 24VDC is the answer, full stop. It's the industrial control standard, it pairs with off-the-shelf DIN-rail power supplies and PLC transistor outputs, and it's a low touch voltage for anyone working in the panel. Fit the flyback diode or a suppressed connector every time; treat it as part of the coil spec rather than an accessory. If the solenoid's job is piloting a pneumatic actuator rather than handling process media directly, a NAMUR-mount valve bolts straight to the actuator and cleans up the tubing, and we've explained when that layout earns its keep in our post on why a NAMUR solenoid valve fits a pneumatic actuator.
24VAC: Transformer-Fed Building Services
HVAC controls, irrigation systems, and similar building services run on 24VAC from step-down transformers. The mistake that kills these systems is sizing the transformer on holding VA. Remember the 10-15x inrush figure: a transformer sized for the holding load will sag every time the valve fires, the plunger may never seat, and the coil ends up parked at inrush current. Size the transformer for the inrush VA of every coil that can energize simultaneously.
120VAC: Line Voltage and Legacy US Plants
120VAC is typically the default in older US plants and anywhere you want to wire a valve without adding a power supply. Pull-in is strong and the wiring is simple. The costs are the jam-burnout risk that comes with any AC coil and the frequency requirement: confirm the coil is rated for 60Hz before it lands on a US panel, especially on equipment sourced overseas.
| Application | Recommended Voltage | Key Caution |
|---|---|---|
| Vehicles, mobile equipment, battery/solar | 12VDC | Double the current of 24VDC per watt; watch wire gauge and voltage drop. |
| PLC automation, new control panels | 24VDC | Flyback diode or suppressed connector on transistor outputs. |
| HVAC, irrigation, transformer-fed systems | 24VAC | Size the transformer for inrush VA, and every coil that fires at once. |
| Legacy plants, line-voltage retrofits | 120VAC | Jam equals burnout; confirm the coil is rated 60Hz. |
Whatever the voltage, run the same enclosure checklist: connector type (DIN 43650 is the common industrial form), ingress rating (IP65 handles washdown splash and dust), insulation class (F and H are the usual industrial grades, with H tolerating more heat), and duty cycle (continuous versus intermittent). When you're comparing options across all four voltages, our solenoid coils collection is organized so you can filter by the electrical spec first.
Replacing a Coil: Reading the Nameplate and Matching the Spec
Start at the label. A proper coil nameplate gives you voltage, AC or DC, frequency for AC, wattage or VA, insulation class, duty cycle, and connector type. Photograph it before it burns off; a cooked coil often takes its own label with it.
Coils are brand- and series-specific. Match the coil inner diameter to the armature tube, match the stack height, and never force or shim a coil that fits wrong. The coil sheds much of its heat into the armature tube, so a sloppy mechanical fit compromises the thermal design even when the electrical spec matches.
The AC/DC line is absolute. A DC coil on AC power chatters and won't hold, because the current reverses 50 or 60 times a second. An AC coil on DC power is worse: with no changing field, there's no inductive impedance to limit current, so the coil draws far above its holding rating continuously and burns out. Match type, voltage, and frequency exactly.
When the label is gone, measure what's left. Record the coil resistance, the inner diameter, the outer dimensions, and the stack height; note the valve body markings, and call us at 888-825-8800. Our team in Exton, PA has been cross-referencing coils since 1965, and it's faster to send us the numbers than to guess and burn a second coil, confirming the first mistake.
Quick Decision Framework: AC or DC in 30 Seconds
Usually you'll choose DC, and almost always 24VDC, for PLC automation, new control panels, anything battery-fed, and noise-sensitive installations. And don't forget to add the flyback diode. In general, choose AC for line-voltage retrofits, legacy 120VAC plants, and 24VAC transformer systems in HVAC and irrigation, and accept the frequency-match and jam-burnout obligations that come with it. If the media is dirty and a stuck plunger is a realistic fault, DC rides through the jam while AC self-destructs; put a strainer upstream either way.
One last worked example. A plant replaces a failed 120VAC/60Hz coil on a water line while migrating its controls to 24VDC. The right move is a 24VDC continuous-duty coil for that valve series, matched on coil ID and stack height, with a DIN 43650 connector carrying built-in suppression, wired to the new PLC output. The old coil's VA rating is replaced by a wattage rating; the hum disappears, and the next jammed plunger costs a strainer cleaning instead of a coil. If your nameplate raises questions the label can't answer, call 888-825-8800 and we'll cross-reference it.
*NOTE: Solenoid behavior varies with valve construction, coil family, media, pressure differential, ambient temperature, and approvals. Use this guide for selection logic, then verify the exact coil’s voltage range, AC frequency, inrush and holding VA or wattage, duty rating, response time, enclosure rating, and approved valve compatibility in the manufacturer’s data sheet.
