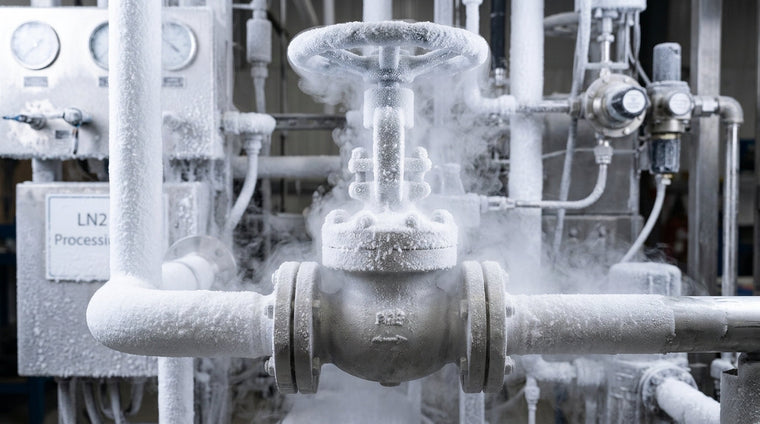

The Best Valves for Liquid Nitrogen

Liquid nitrogen boils at -196°C (-320°F) at atmospheric pressure. When it flashes to vapor, it expands roughly 700 times by volume (694:1). Every valve decision in this guide traces back to those two numbers. The cold destroys ordinary valve materials, and the expansion turns any blocked-in liquid into a pressure problem that will find the weakest component in the segment. An LN2 system asks three duties of its valves: shut-off, control, and relief. We'll cover all three, plus the trapped-liquid hazard that connects them.

Why Standard Valves Fail at -320°F

Put an off-the-shelf valve into liquid nitrogen service and it fails in three predictable ways. Carbon steel bodies go brittle and can crack under shock loads a ductile body would shrug off. Elastomer O-rings and seals harden and crack, since no elastomer stays rubbery anywhere near -320°F. And the stem packing ices up as atmospheric moisture freezes onto the cold stem, which jams the valve and then tears up the packing on every stroke.

Body material is the first screen, and it's a short list. Austenitic stainless steels such as 304 and 316 remain ductile all the way down to -196°C. Compare that to A352 LCB, the grade sold as "low-temperature carbon steel," which bottoms out at -46°C. That leaves a 150°C gap between what the grade can do and what LN2 demands. Treat "low-temp carbon steel" as a disqualifier for this service, full stop.

Most published guidance on liquid nitrogen cryogenic valves is recycled LNG content, written for export terminals. LN2 users run different systems: environmental test chambers cycling product between temperature extremes, laboratory dewars, food-freezing tunnels, and cryo-biology storage. The physics is the same, but the duty is smaller bore, cycles more often, and sits closer to people. That makes seat selection, cavity relief, and thermal relief placement matter more per valve, which is where this guide spends its time.

Cryogenic Construction: Bodies, Bonnets, and Materials

Specify the body in 316 stainless or its cast equivalent CF8M, with pressure-temperature ratings per ASME B16.34. Proof that the metal can take the cold comes from Charpy V-notch impact testing at -196°C, which BS 6364 specifies at 20 J minimum average with no single specimen below 16 J. Bolting needs its own low-temperature grade. A320 L7 studs are the standard answer, because a ductile body held together by brittle bolts is still a brittle valve.

The Extended Bonnet Keeps the Packing Warm

Every serious cryogenic valve carries an extended bonnet, and the reason is thermal. The extension creates a vertical column where nitrogen vapor collects above the liquid. That gas column insulates the stem packing from the process, so the packing runs warm enough to stay resilient and seal. MSS SP-134 adds minimum body and bonnet extension length requirements for exactly this reason.

The gas-column principle dictates installation. Mount the valve with the stem up, or close to it. Install a cryogenic valve stem-down, or even stem-horizontal on some designs, and liquid floods the bonnet. The extension then does nothing, the packing runs at process temperature, and you've paid for a cryogenic valve that behaves like a standard one.

Cleanliness is one more construction requirement buyers skip at their peril. A cryogenic valve must arrive fully degreased and moisture-free, because trace oil or water that's harmless at room temperature becomes a solid blockage or a hazard at -320°F. This is also where the oxygen question gets decided. An LN2 valve assembled with ordinary hydrocarbon-compatible lubricants must never migrate into liquid oxygen service, where those same traces become ignition fuel. ValveMan's stainless LN2 vented ball valves, for example, are explicitly marked not for oxygen service. If LOX is anywhere in your facility, say so on the spec and buy oxygen-cleaned valves with documentation.

Running LOX alongside LN2 and not sure where the line is? Talk to a ValveMan engineer at 888-825-8800 before you spec the wrong lubricant into an oxygen system.

Sealing at -320°F: Seats, Stem Seals, and Ice

Seat material separates a valve that seals at -320°F from one that weeps from day one. Standard PTFE cold-flows under seat load and loses its resilience at cryogenic temperatures, so a leak path opens and stays open. PCTFE, better known as Kel-F, holds its dimensions and reliably seals at -320°F. Metal seats earn their place in fire-safe or very high-cycle duty, but they cost more and leak more than soft seats. Our recommendation for most LN2 ball valves is PCTFE, without much debate.

The stem seal follows the same logic. TFM-1600 or spring-energized PTFE lip seals handle cryo cycling and keep sealing as they age. Graphite packing costs less up front and tends to leak more every year, a lesson documented in cryogenic solenoid valve design that applies to every cryo stem. Pay for the PTFE-family seal once instead of chasing stem leaks for the life of the valve.

Ice is the third sealing enemy. Any moisture that enters the system freezes on seats and stems, and a grain of ice on a PCTFE seat leaks exactly like a damaged one. Purge lines with dry nitrogen before cooldown, and where the duty allows it, keep the system cold between cycles instead of letting it warm and breathe in humid air.

A concrete reference spec helps calibrate expectations. ValveMan's stainless LN2 vented ball valve runs 1/4" through 2" NPT, full port, with PCTFE seats and TFM-1600 stem seals, rated 1000 psi maximum across -320°F to 100°F, with an upstream-vented ball. Those numbers are a sensible baseline for comparing any dedicated liquid nitrogen shut-off valve you're evaluating.

Shut-Off Duty: Vented Ball Valves Done Right

For LN2 isolation, the ball valve wins. Quarter-turn operation works with gloved or frosted hands, the full port passes the high gas flow of cooldown without choking, and PCTFE seats close bubble-tight. But a standard ball valve hides a hazard that has split valve bodies.

The Trapped-Liquid Worked Example

Close an unvented ball on a liquid-full line and the cavity between the two seats seals in a slug of liquid nitrogen. Heat leaks in through the body no matter how well the line is insulated. The trapped liquid warms and tries to expand against a fixed volume, and pressure climbs fast. Trapped LN2 warming at fixed volume can reach pressures well above typical valve and seat ratings, with the roughly 700x liquid-to-gas expansion behind it. Something gives before then. Usually the seats blow out of their grooves, which relieves the pressure and permanently ruins the valve. On a heavier valve, the seats may hold, and then the cavity itself becomes the fuse. A 1000 psi body rating is no comfort when the failure starts at the soft goods.

The Vent Hole and the Flow Arrow

The fix is a small hole drilled through the upstream side of the ball. With the valve closed, the hole connects the cavity to the supply line, so warming liquid relieves back upstream instead of pressurizing the cavity. The tradeoff is directionality: a vented ball seals in one direction only. Install it with the flow arrow matching actual flow. Reverse it and the vent hole connects the cavity to the downstream side, which defeats the seal you bought the valve for. This installation rule has lived in 15-year-old engineering forum threads instead of buyer guides, and it causes real leaks in the field. Put the flow direction on the P&ID and check it at installation.

If the line genuinely needs bidirectional shut-off, specify cavity-relieving seat designs or pipe an external cavity relief instead of deleting the vent.

The other valve types play smaller roles in LN2 shut-off. A cryogenic globe valve suits fill stations where an operator throttles by hand every shift. Check valves belong on dewar fill lines to stop backflow. Gate valves rarely justify themselves in small-bore LN2 service, and we don't recommend hunting for one.

Not sure whether your isolation points need a vented ball or a cavity-relieving design? Call 888-825-8800 and talk it through with a ValveMan engineer — real engineers, not a call center.

Control Duty: Throttling, Cv, and Actuation

A plain on/off ball valve throttles badly. Most of its flow change happens in a narrow band of travel, which makes a control loop hunt. Cutting a V-port into the ball fixes this by giving the valve a progressive characteristic a PID loop can actually work with. If you're still deciding whether your duty is two-position or throttling, our comparison of modulating versus on/off control valves walks through the distinction.

Field Example at -320°F

This configuration is proven at temperature. An API test facility ran an actuated cryogenic ball valve at -320°F with Kel-F (PCTFE) seats, a full-port ball with a 30° V-port, a spring-return fail-close pneumatic actuator, and 4-20 mA modulation from the plant PLC. The full write-up is in our -320°F liquid nitrogen control valve case study, and it's the template we recommend for most LN2 control duties.

Cv selection for LN2 carries a trap that water-service habits won't catch. During cooldown, warm piping flashes the incoming liquid to gas, and at 160x the volume, the valve is passing mostly vapor. A valve sized only for steady-state cold liquid will be badly undersized during cooldown and every restart. Size for two-phase flashing flow and near-saturation operation first, then confirm the valve still has usable rangeability at steady-state liquid conditions.

Fail position deserves a deliberate choice rather than a default. Where the valve feeds cryogen into a chamber, a freezer, or a process, specify spring-return fail-close, so a loss of air or power stops the nitrogen release. Reserve fail-open for the rare case where continued cooling is the safe state, such as protecting a load that must never warm. For the loop hardware itself, our guide to control valve positioner types and selection covers getting a clean 4-20 mA signal into valve position, and our breakdown of control valve actuators and how to select them covers the muscle behind it.

For small-bore LN2 dosing, cryogenic solenoid valves fill the niche below actuated balls. Look for spring-energized PTFE lip seals on the pressure boundary, since graphite alternatives leak as they age. The choice between the two architectures is covered in our piece on choosing an actuated ball valve or a solenoid valve.

Sizing Cv for flashing cooldown flow is where most LN2 control loops go wrong. Send us your line conditions at 888-825-8800 and we'll check the math before you buy a valve that chokes on restart.

Relief Duty: Protecting Every Trapped-Liquid Segment

The rule is simple to state and easy to violate: every pipe segment that can trap liquid between two closed points needs a thermal relief valve. That includes hose assemblies between quick-disconnects and the inner pipe of vacuum-jacketed line sections. Walk the P&ID valve by valve and mark every possible trap. Most LN2 incidents start in a segment nobody marked.

Thermal Relief vs. Process Relief

Buyers regularly confuse two different devices. A thermal relief valve is a small valve that protects a blocked-in liquid-full segment as it warms; it only needs to pass a trickle to hold pressure down. A process relief valve protects a vessel against a sizing case such as loss of insulating vacuum, and it's orders of magnitude larger. Confusing the names leads to thermal reliefs grossly oversized or, worse, vessels protected by a valve sized for a trickle. A third name collision makes it worse: a "thermal expansion valve" is an HVAC refrigerant metering device and has no relief function at all.

The physics behind the urgency is the same as the ball-cavity example. Even a short liquid-full section builds destructive pressure within the time it takes a line to warm.

Route every relief discharge to a safe location away from personnel, and remember the outlet will ice over in humid air during a release. Specify stainless trim and cryo-rated soft goods on the relief valve itself; a relief with elastomer internals is a standard valve wearing a relief valve's job title. Start matching cryogenic safety relief valves to your set pressures and connections in our safety relief valves collection.

Standards Checklist and How to Specify

Four documents do the heavy lifting for LN2 valve specification. BS 6364 is the long-used cryogenic valve specification, with seat leakage testing at -196°C. ISO 28921-1 is the current international standard. MSS SP-134 adds body and bonnet extension length requirements. ASME B16.34 sets the pressure-temperature ratings behind all of them. A vendor who can't tell you which of these the valve was tested to is selling you a standard valve with cold aspirations.

Here's a spec template you can copy onto an RFQ:
