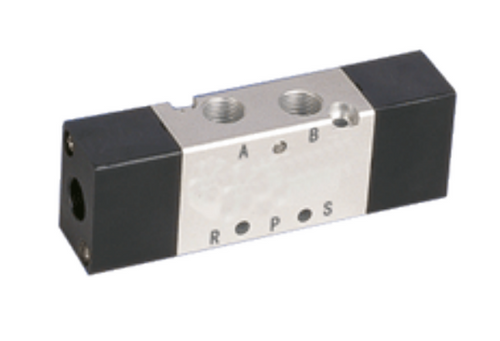

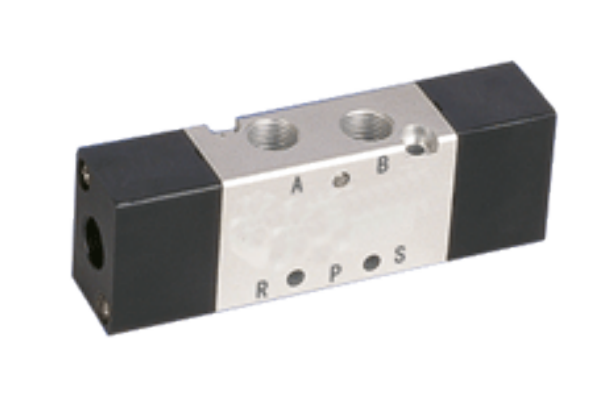

STC 3A120-1/8" NPT Pilot Operated Air Valves- Double Pilot, 3-Way, 2-Position
Brand : STC Valve
MSRP: $32.45
Starting At:
$27.99
(You save
$4.46
)
- Minimum Purchase:
- 1 unit
- Size:
- 1/8"
- Size Dropdown:
- True
STC 3A120-1/8" NPT Technical Specifications
Description
3 Way 2 Position Double Pilot Air Valve
Port & Mounting
Body Ported, Stackable (Stacking Hardware Included)
Action & Motion
Air Piloted, Two Position, 3 Way
Operating Pressure
28" Hg to 115PSI
Working Medium
40 micron filtered air, inert gas
Maximum Pressure
150PSI
Operating Temperature
-5 to 80°C with non-freezing medium
Pilot Pressure
-40 to 115PSI
Body Material
Anodized Aluminum
Seal Material
NBR (Buna N)
Cv
0.67
SCFM @ 100 PSI
25
