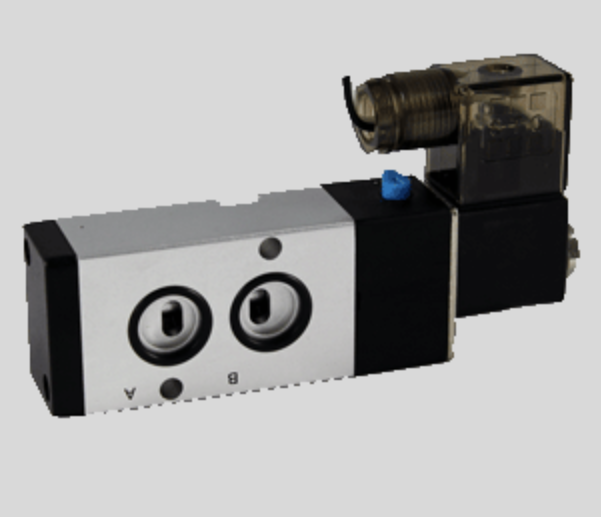

STC 4V310-3/8B Solenoid Valve- Spring Return NAMUR Mount, 4-Way, 5-Port, 2-Position

Brand :

MSRP: $51.39
Starting At: $44.99
(You save $6.40 )
Minimum Purchase:
1 unit
Size:
3/8"
Size Dropdown:
True

STC 4V310-3/8B Technical Specifications

Port & Mounting
Body Ported, 4-Way, 5-Port, 2-Position, Spring Return, NAMUR Mount
Action & Motion
Air Pilot, Spool Design, Response Time < 20ms
Operating Pressure
21 to 115PSI (Proof Pressure: 200PSI - leaks develop)
Port Size (NPT)
0
Operating Temperature
14 to 140°F (-10 to 60°C)
Cv
1.68
SCFM @ 100 PSI
80
Manual Override
Detentable (depress & rotate)
Electrical Connection
DIN, Grommet
Working Medium
40 micron filtered air or inert gas
Coil Duty Cycle & Protection
100% ED (Continuous Duty), IP65, Class F
Coil Voltage Options
12VDC

24VDC

24VAC

110/120 VAC (50/60Hz),

220/240 VAC (50/60Hz)
Coil Power
3 / 4.8W
Coil Locking Nut
M8 x 0.75 Threads
Wetted Surface
Anodized Aluminum, NBR (Buna N), Stainless Steel


Discover more about the STC 4V310-3/8B Solenoid Valve
