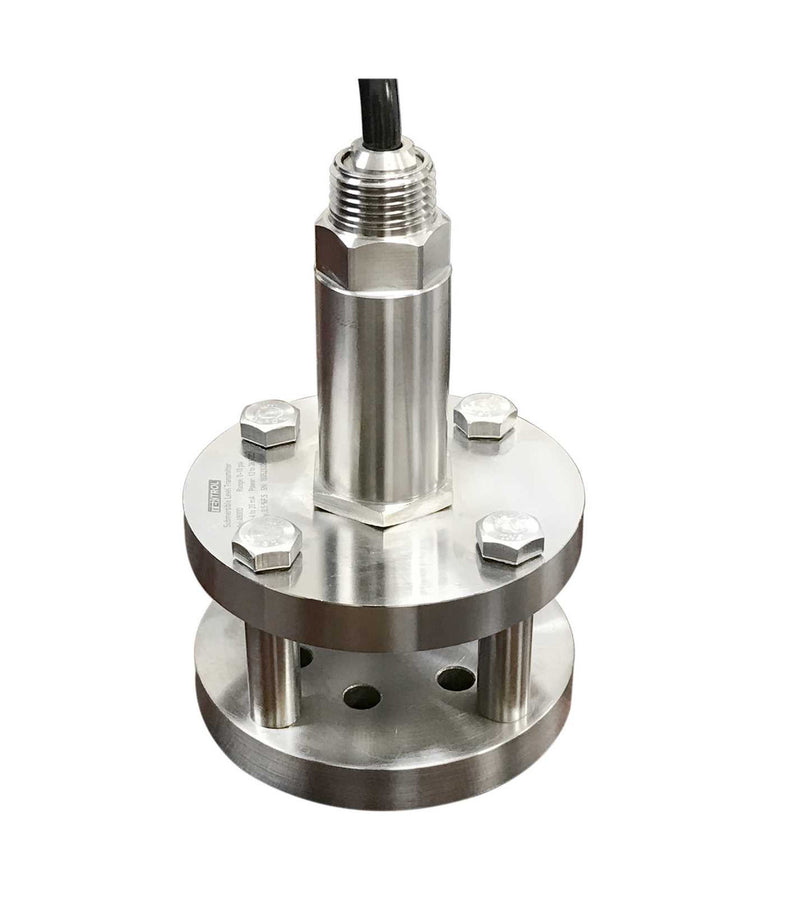

Tek Trol, Tek-Sub 4800D Series Waste Water Submersible Level Transmitter
Brand : Tek-Trol
Starting At:
$351.99
- Size Dropdown:
- True
Tek Trol, Tek-Sub 4800D Series Waste Water Submersible Level Transmitter
Features
- Non-clogging sensor cage
- Completely sealed stainless steel housing
- No need for external adjustment and calibration
- Temperature Compensated
- No moving parts, low maintenance
- Reliable level measurements in demanding applications
- Measuring pressure ranges from 5 psig to 20 psig
- Accuracy: ±0.5% F.S.
Technical Specifications
Item
Waste Water Submersible Level Transmitter
Pressure Range
5 to 20 psig
Housing
304 SS
Cable
40 and 60 Feet Poly Cable
Cable Material
PTFE or Polyurethane
Diaphragm
316 SS
Oil Filling
Silicone oil
Pressure Type
Gauge (vented)
Discover more about theTek Trol, Tek-Sub 4800D Series Waste Water Submersible Level Transmitter
Documents
- Catalog
- Manual
- Quick Start Guide
- Datasheet
- Communication Instruction Manual
- Water Industry Brochure
- Waste Water Industry Brochure
