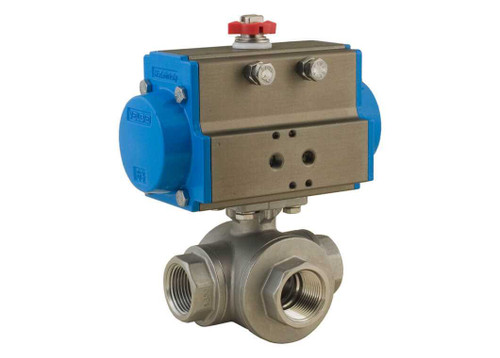

Bonomi 8P0140 - 3 Way, Stainless Steel, L-Port, Ball Valve with DA Actuator

$221.99

Product Videos

Bonomi 8P0140 - Available for Immediate Purchase at ValveMan.com 01:19

Discover more information on the Bonomi 8P0140 at https://valveman.com/products/bonomi-8p0140/

  • Bonomi 8P0140 ...
    Discover more information on the Bonomi 8P0140 at https://valv...

Product Description

Bonomi 8P0140 - Technical Specs

Item
3-Way Ball Valve with Double Acting Actuator
Port Configuration
L-Port (Standard)
Body Material
Stainless Steel (CF8M)
Body Style
3-Way
Connection Type
Threaded (FNPT x FNPT X FNPT)
Size Range
1/2" to 3"
Max. Pressure
1000psi (1/2" - 1"), 800psi (1-1/4" - 3")
Seat Material
RTFE
Ball Material
316 Stainless Steel
Temp Range
-4F to 450F
Stem Type
Blowout Proof
Stem Material
316 Stainless Steel
Actuator Action
Double Acting
Sized For
80 PSI of Available Air Pressure
